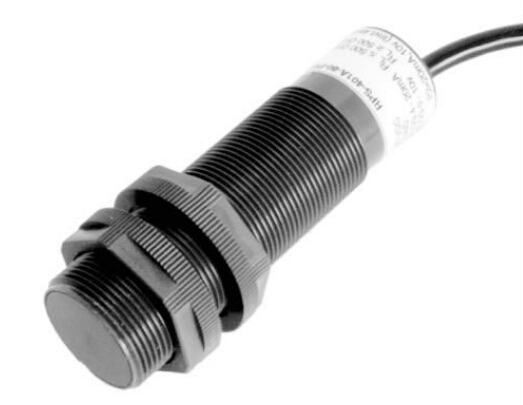

US Migatron Corporation Analog Ultrasonic Sensor - RPS-401A-80P

1. RPS-401A-80P Analog Ultrasonic Sensor Product Description:

The RPS-401A-80P analog ultrasonic sensor is installed in a PVC cylindrical housing and operates independently. Its supply voltage is 20-30VDC and is protected against reverse polarity. It also has a narrow beam angle, allowing it to reach sealed positions. A flat object can be tilted up to 10 degrees and still be detected.

2. RPS-401A-80P Analog Ultrasonic Sensor Product Features:

Adjustable zero & span

Detection range 8-80 inches

Narrow beam

LED intensity indicator

Short circuit protection

Analog current & voltage output

Reverse polarity protection

Self-contained cylindrical housing

Input voltage 20-30VDC

RPS-401A - in PVC housing

Wide temperature range • Broad chemical resistance (PVC)

Optional inverted & non-inverted output

3. RPS-401A-80P Analog Ultrasonic Sensor Product Specifications:

Operating range

RPS-401A-80P: 8" to 80", adjustable

Power input: 20-30VDC, reverse polarity protected

Input current: 80 mA

Ambient temperature: -40° to 60°C or -40° to 140°F

Humidity: 0%-95%, non-condensing

Output: Current source analog output, 4-20mA inverted & non-inverted (load 0Ω-500Ω), analog voltage output beam diameter (inches), 0-10V inverted & non-inverted (load 500Ω to ∞) 4.5810, short circuit protection
