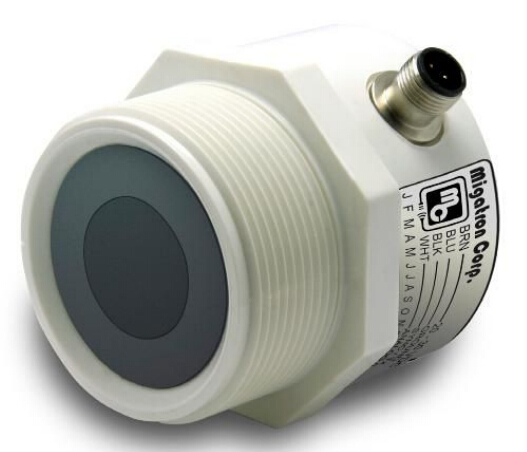

1. RPS-409A-2P Analog Ultrasonic Sensor Product Description:

The RPS-409A-2P analog ultrasonic sensor is a self-contained sensor installed in a PVC housing with 2" NPT thread mounting. Its supply voltage is 20-30VDC with reverse polarity protection. The RPS-409A-2P utilizes today's PLC and computer analog input cards. The selected analog card determines the system resolution. The values programmed into the PLC or computer determine zero and span.

2. RPS-409A-2P Analog Ultrasonic Sensor Product Features:

Input voltage 20-30VDC

Reverse polarity protection

Analog voltage output

Analog current output

Short circuit protection

Wide temperature range

Temperature compensation

Multiple sensing ranges

Self-contained sensor

Quick disconnect connector

PVC housing

Sync/Tx input line

3. RPS-409A-2P Analog Ultrasonic Sensor Product Specifications:

Model Range Input Current

RPS-409A-40-2P 3-40" 35mA typical

RPS-409A-80-2P 6-80" 35mA typical

RPS-409A-144-2P A10-144" 45mA typical

Power Input: 20-30VDC, reverse polarity protection

Ambient Temperature: -40-60°C / -40-140°F

Humidity: 0-95%, non-condensing

Output: Current source analog output 20-4mA

(Load 0-500 Ohms max) distance from sensor

Analog voltage output 0-10V

(Load 500 Ohms to infinity)

Short circuit protection
