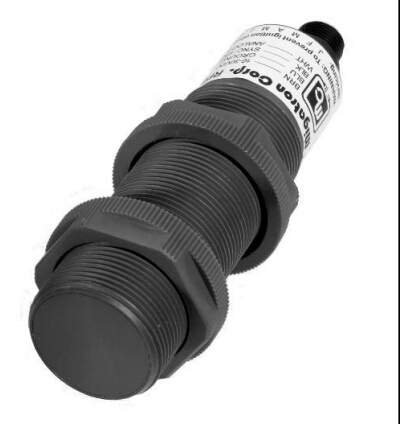

US Migatron Corporation Intrinsically Safe Analog Ultrasonic Sensor - RPS-409A-IS

I. Product Description of Safety Analog Ultrasonic Sensor RPS-409A-IS:

RPS-409A-IS is an intrinsically safe analog ultrasonic sensor. It is a self-contained sensor installed in a 30mm cylindrical housing, powered by 16~30VDC with reverse polarity protection. RPS-409A-IS2 has a 0-10VDC analog output with short circuit protection. The analog voltage per inch is fixed based on the maximum range of the device. RPS-409A-IS utilizes today's PLC and computer analog input cards. The values programmed into the PLC or computer determine the zero point and span.

II. Product Features of Safety Analog Ultrasonic Sensor RPS-409A-IS:

Intrinsically Safe

Multiple Sensing Ranges

Wide Temperature Range

Temperature Compensation

LED Indicator

UL Certification

Input Voltage 24VDC

Reverse Polarity Protection

Analog Voltage Output

Short Circuit Protection

Sync/Tx Input Line

Self-Contained Sensor

PVC Housing

Quick Disconnect Connector

III. Product Parameters of Safety Analog Ultrasonic Sensor RPS-409A-IS:

Power Input: 16 - 30VDC, reverse polarity protection (minimum 24VDC must be applied to the power safety barrier)

Input Current: max 24mA, 24VDC applied to power safety barrier 5"

Ambient Temperature: -40 - 60°C or -40 - 140°F

Humidity: 0 - 95%, non-condensing
