Product Introduction

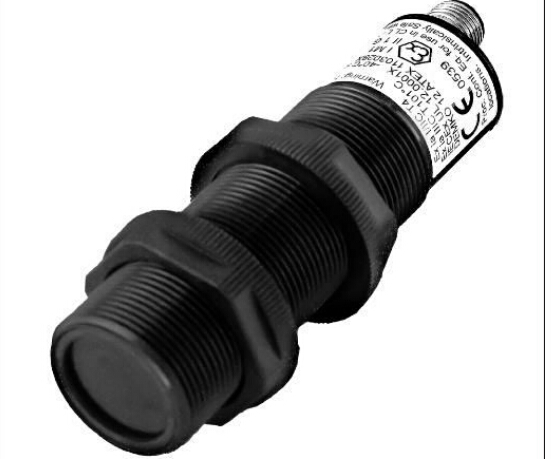

1. Product Description of Intrinsically Safe Ultrasonic Sensor RPS-409A-IS2:
The RPS-409A-IS2 is an intrinsically safe analog ultrasonic sensor available in different ranges. The sensor is self-contained and mounted in a 30 mm cylindrical housing, powered by 16~30 V DC with reverse polarity protection. The RPS-409A-IS2 utilizes today's PLC and computer analog input cards. The values programmed into the PLC or computer determine the zero point and span.
2. Product Features of Intrinsically Safe Ultrasonic Sensor RPS-409A-IS2:
• Intrinsically Safe
• Multiple Detection Ranges
• Temperature Compensation
• Wide Temperature Range
• LED Indicator
• Analog Voltage Output
• PPS Housing
• Sync/Tx Input Line
3. Product Parameters of Intrinsically Safe Ultrasonic Sensor RPS-409A-IS2:
Power Input: 16 - 30 VDC, reverse polarity protection (minimum 24 VDC must be applied to the safety barrier)
Input Current: 24 mA, 24 VDC applied to the safety barrier
Output: Analog voltage output 0 - 10 V, (load 100k Ohms to infinity), short circuit protection
Ambient Temperature: -40 ~ +60°C or -40 ~ +140°F
Humidity: 0 - 95%, non-condensing
