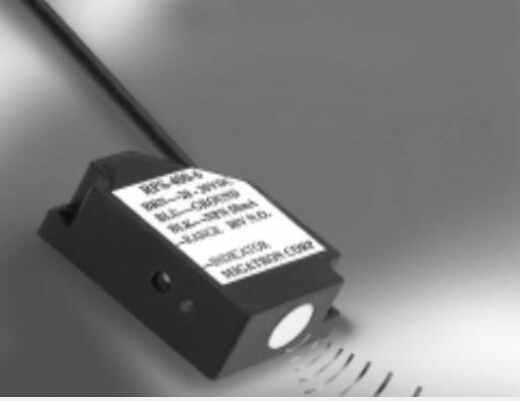

US Migatron Corporation Ultrasonic Sensor - RPS-400-6

1. Ultrasonic Sensor RPS-400-6 Product Description:

The RPS-400-6 is a compact high-frequency sensor. It is part of the ultrasonic sensor series to better meet the needs of the machinery manufacturing industry. The RPS-400-6 is a three-wire NPN transistor output device. At 50mA, the transistor can continuously switch (output) 30VDC. The RPS-400-6 is ideal for detecting transparent objects. Because it can operate in dusty environments, it is suitable for rugged conveyors, PC board loading equipment, and fillers.

2. Ultrasonic Sensor RPS-400-6 Product Features:

- Compact size

- 20~30 VDC power input · LED indicator

- 2~6 feet detection range · NPN output

- Adjustable detection range · Narrow sensing beam

- Detects translucent or opaque objects · Fast response time

3. Ultrasonic Sensor RPS-400-6 Technical Specifications:

Operating Range: 2" to 6", adjustable

Power Input: 20-30VDC, reverse polarity protection

Input Current: 10mA - 15mA

Ambient Temperature: 16°C to 41°C (60°F to 105°F)

Humidity: 0-95% non-condensing

RPS-400-6 Housing: VALOX housing filled with epoxy potting compound. Silicone rubber sensing face.

Output: NPN open collector output, 30V/50mA continuous

Sensor Frequency: 300kHz

Response Time: Short 0.2ms / Long 2.1ms
