Mini Backlight - WH5097D

The WH5097D is a 4-channel mini LED driver designed to drive 2D-backlight displays, supporting 12-bit PWM. With proper timing control, the WH5097D can achieve direct drive or scan-type drive methods. The device can provide up to 30 mA continuous current per channel. The WH5097D uses a proprietary interface protocol and self-addressing algorithm, allowing each WH5097D on the BLU (Backlight Unit) to be assigned an address to communicate with the backlight timing controller (BCON).Includes full protection, such as built-in LED open/short detection and thermal shutdown.

I.Mini Backlight -Features of WH5097D:

Supply Voltage: VDD 3.0V ~ 5.5V
Active Mode Current: 450uA (typ)
Internal OSC, up to 16MHz
Frequency Multiplication:
-AM (Direct Drive), with x1, x2, x4, x8, x16, x32, x64
4 High-Precision Current Sinks (I-type)
Fault Voltage > 40V
Drive Current Range: (0.5~5 mA), (1.0~10 mA), (2.0~20 mA), and (3.0~30 mA)
7-bit I-DAC per slot
Saturation voltage of 0.4V@25mA per Isink
12-bit true brightness control resolution, PWM dimming at 32 kHz (with dithering)
PWM output frequency support (direct drive mode): 60/120/144/240/480/960/1920/3840 Hz
PWM output frequency accuracy: +/-2%
DC I-slot accuracy: +/-2%
2-bit programmable slew rate control, EMI reduced from 0.3us to 2us
2+2-bit PWM output skew control
Center/forward PWM waveform alignment
Dimming mode control scheme:
-PWM - 12-bit
Connectivity:
-Brightness control input (Dip)
-Dynamic headroom status output
-Fault report output (Dis/Dos)
Diagnostics:
-LED short detection
-LED open detection
-Input UVLO
-Thermal shutdown at 165℃/30℃ hysteresis
Chip internal status readout:
-Vch measurement
-OTP trigger event
-LED open/short status

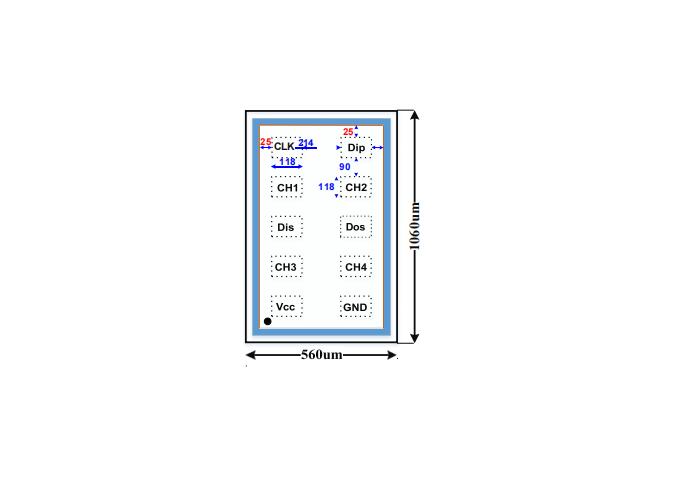

Packaging:
-CSP-10 bumper
-DFN3x3-10L

II.Mini Backlight -Applications of WH5097D:

Control panel lighting

Local dimming LED backlight systems
