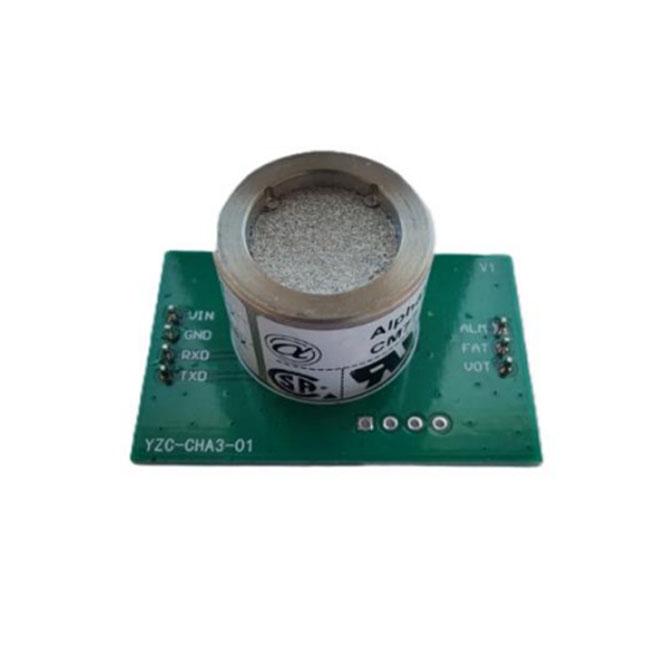

UK Alphasense CH-A3 Catalytic Combustion Methane Sensor Module (CH4)AG-3-CHx-CHA3 （D）Description:
AG-3-CHxThe -CHA3 sensor module consists of a catalytic combustion type sensor and a data acquisition and processing board, capable of detecting concentrations of combustible gases such as CH4, C3H8, and H2 in the environment. The module uses Alphasense CH-A3 catalytic combustion sensor as the sensing element, and detects gas concentration under the control of the sampling circuit, featuring good stability and anti-poisoning performance. The module communicates digitally with the receiving terminal, outputting gas concentration signals via UART bus, allowing users to quickly form systems in a simple manner in various applications, suitable for gas detection in industrial fields.
UK Alphasense CH-A3 Catalytic Combustion Methane Sensor Module (CH4)AG-3-CHx-CHA3 （D）Parameters:
| Product Model |
AG-3-CHx-CHA3（D） |
| Detection Gas |
CH4, C3H8, H2 and other combustible gases |
| Detection Principle |
Catalytic Combustion |
| Range |
0-100%LEL |
| Resolution |
1%LEL |
| Measurement Error |
<±5%FS |
| Operating Voltage |
DC5-12V |
| Operating Current |
≤100mA@5V |
| Output Method |
UART (+3.0V TTL level) |
| Operating Temperature |
-40℃ ~ + 70℃ |
| Operating Humidity |
0% ~ 90%RH (non-condensing) |
| Operating Pressure |
1 ± 0.1 atm |
| Storage Temperature |
10℃ ~ +40℃ |
| Dimensions |
L*W*H=49mm*34mm*26mm |
| Sensor Expected Life |
≥2 years |
