Product introduction

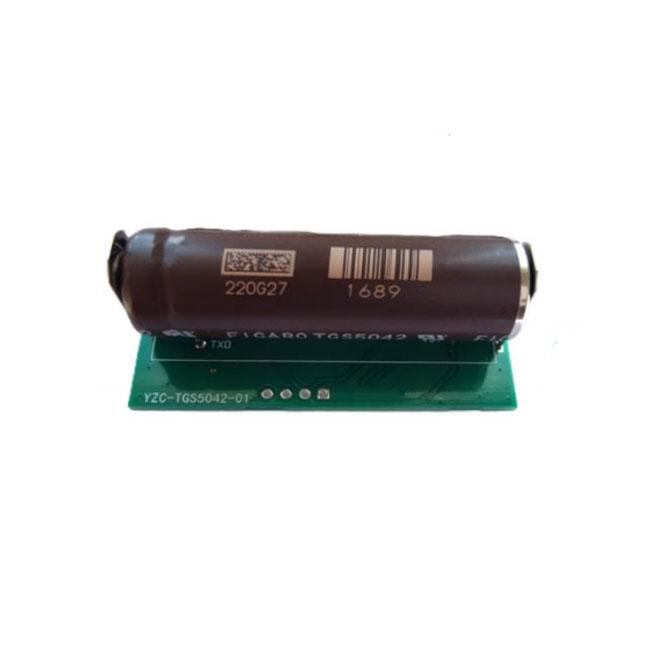

Equipped with Japan figaro TGS5042 electrochemical carbon monoxide sensor module (CO)AG-4-CO-M5042(D) description:
The AG-4-CO-M5042(D) sensor module consists of an electrochemical sensor and a data acquisition processing board, which can detect the CO gas concentration in the environment. The module uses Figaro Technology TGS5042 electrochemical sensor as the sensing element, and detects gas concentration under the control of the sampling circuit. The module is pre-calibrated before leaving the factory and has good stability and selectivity. This module has a built-in temperature sensor, and data correction can be performed through software algorithms to reduce the impact of environmental changes on measurement results. This module communicates digitally with the receiving terminal, outputting gas concentration signals through the UART bus, making it convenient for users to quickly form systems in a simple way in different occasions. It is suitable for indoor and outdoor air quality detection, as well as gas detection in industrial fields.
Equipped with Japan figaro TGS5042 electrochemical carbon monoxide sensor module (CO)AG-4-CO-M5042(D) parameters:
| Product model |
AG-4-CO-M5042(D) |
| Detection gas |
CO |
| Detection principle |
Electrochemical |
| Range |
0-1000ppm |
| Resolution |
1ppm |
| Measurement error |
<±5%FS |
| Operating voltage |
DC（3.2-5.5）V |
| Operating current |
≤500mA@5V |
| Output method |
UART (+3.0V TTL level) |
| Operating temperature |
-10℃ ~ + 55℃ |
| Operating humidity |
0% ~ 90%RH (non-condensing) |
| Operating pressure |
1 ± 0.1 standard atmosphere |
| Storage temperature |
10℃ ~ +40℃ |
| Dimensions |
L*W*H=53mm*27mm*26mm |
| Expected sensor life |
10 years |
