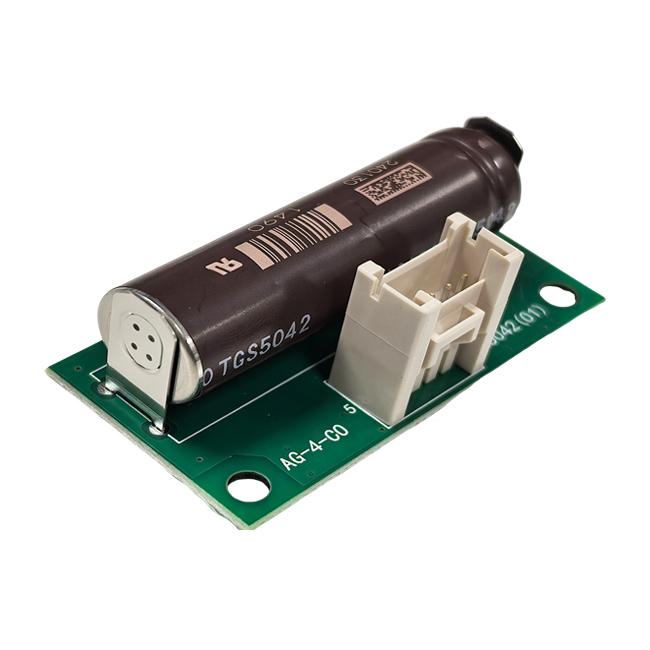

Equipped with Japan Figaro TGS5042 Electrochemical Carbon Monoxide Sensor Module (CO) AG-4-CO-M5042 Description:
The AG-4-CO-M5042 sensor module consists of an electrochemical sensor and a data acquisition processing board, which can detect the CO gas concentration in the environment. The module uses Figaro Technology TGS5042 electrochemical sensor as the sensing element, and detects gas concentration under the control of the sampling circuit. The module is pre-calibrated before leaving the factory and has good stability and selectivity. This module has a built-in temperature sensor, which can perform data correction through software algorithms to reduce the impact of environmental changes on measurement results. The module communicates digitally with the receiving terminal, outputting gas concentration signals through the UART bus, making it easy for users to quickly form a system in a simple way in different occasions. It is suitable for indoor and outdoor air quality detection, as well as gas detection in industrial fields.
Equipped with Japan Figaro TGS5042 Electrochemical Carbon Monoxide Sensor Module (CO) AG-4-CO-M5042 Parameters:
| Product Model |
AG-4-CO-M5042 |
| Detected Gas |
CO |
| Detection Principle |
Electrochemical |
| Measurement Range |
0-1000ppm |
| Resolution |
1ppm |
| Measurement Error |
<±5%FS |
| Operating Voltage |
DC（3.2-5.5）V |
| Operating Current |
≤500uA@5V |
| Output Method |
UART (+3.3V TTL level) |
| Operating Temperature |
-10℃ ~ +55℃ |
| Operating Humidity |
0% ~ 90%RH (non-condensing) |
| Operating Pressure |
1 ± 0.1 standard atmosphere |
| Storage Temperature |
10℃ ~ +40℃ |
| Dimensions |
L*W*H=53mm*27mm*26mm |
| Sensor Expected Life |
10 years |
