Product introduction

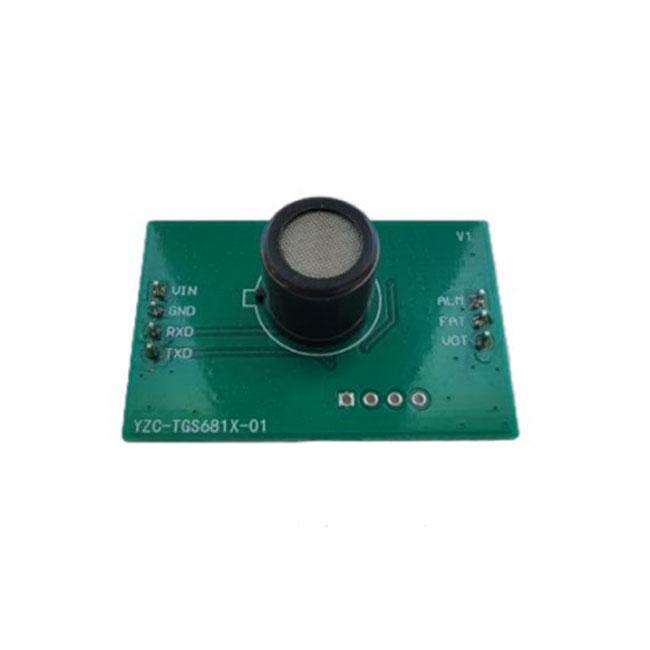

Equipped with Japan Figaro TGS6814 catalytic combustion methane sensor module (CH4)AG-3-CHx-M6814 (D) description:
AG-3-CHx-M6814 (D) sensor module consists of a catalytic combustion sensor and a data acquisition processing board, capable of detecting concentrations of combustible gases such as CH4, C3H8, H2 in the environment. The module uses Figaro Technology TGS6814 catalytic combustion sensor as the sensing element, and detects gas concentration under the control of the sampling circuit. The module is pre-calibrated before leaving the factory, and has good stability and anti-poisoning performance. This module communicates digitally with the receiving terminal, outputting gas concentration signals via UART bus, making it convenient for users to quickly form a system in a simple way in different occasions, suitable for gas detection in household and industrial fields.
Equipped with Japan Figaro TGS6814 catalytic combustion methane sensor module (CH4)AG-3-CHx-M6814 (D) parameters:
| Product model |
AG-3-CHx-M6814（D） |
| Detection gas |
CH4, C3H8, H2 and other combustible gases |
| Detection principle |
Catalytic combustion |
| Range |
0-100%LEL |
| Resolution |
1%LEL |
| Measurement error |
<±5%FS |
| Operating voltage |
DC5-12V |
| Operating current |
≤200mA@5V |
| Output method |
UART (+3.3V TTL level) |
| Operating temperature |
-40℃ ~ + 70℃ |
| Operating humidity |
0% ~ 90%RH (non-condensing) |
| Operating pressure |
1 ± 0.1 standard atmosphere |
| Storage temperature |
10℃ ~ +40℃ |
| Dimensions |
L*W*H=49mm*34mm*26mm |
| Expected sensor life |
Refer to the corresponding sensor datasheet |
