Product Introduction
Japan Murata Ultrasonic SensorMA300D1-1 Applications:
Air separation industry
Power monitoring
Aerospace, etc.
Other uses: Double feed detection for papers or banknotes
Japan Murata Ultrasonic SensorMA300D1-1 Parameters:
| Operating Temperature Range |
-20℃ to 70℃ |
| Structure |
High Frequency Type |
| Center Frequency |
300kHz |
| Total Sensitivity |
1.5~4.0Vp-p |
| Directivity |
5deg.(Reference Value) |
| Capacitance |
1300pF |
| Capacitance Tolerance |
±20% |
| Maximum Input Voltage |
50Vp-p Drive wave number:5 cycles, Drive cycle:300Hz |

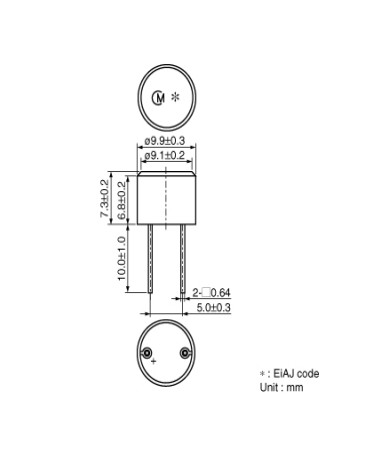

Japan Murata Ultrasonic SensorMA300D1-1 Dimensions:
