Excessive moisture in compressed air? Online dew point transmitter for real-time monitoring to prevent equipment corrosion - SKA/WSD-LDY
Dew point measurement range
Measured gas temperature range: -80～+20℃ Td (atmospheric dew point), -40～+60 ℃
Measurement accuracy
Dew point accuracy (air or nitrogen): ±2℃ Td (standard)
Response time 63% [90%], at gas temperature of +20℃ and pressure of 1 bar
-60 -> -30℃Td
-30 -> -60℃Td
Output: 20 S[40 S ]
5min[20min]
Product Introduction

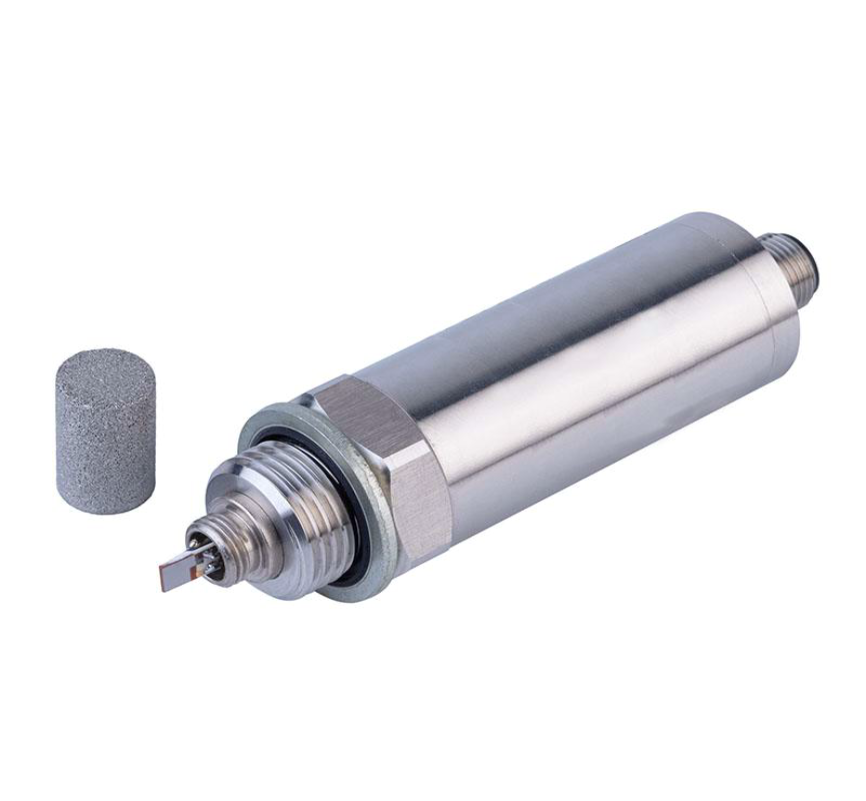

SKA/WSD-LDY Online Dew Point Transmitter
It uses a polymer high-molecular sensitive capacitor, offering rapid response and stable reliability.
Damn, the measurement range is -80℃～20℃ Td, with an accuracy of ±2℃ Td across the full range. This product features automatic zero-point calibration and automatically heats to clean chemical substances attached to the sensor surface, ensuring extremely stable long-term use. This polymer dew point capacitor is the result of over twenty years of arduous research. Typically, polymer capacitors struggle to measure dew points below -40℃ Td due to the extremely low rate of change, making the signal difficult to distinguish in the circuit. Through extensive fundamental research, we have finally mastered the technology to enhance low-humidity sensitivity. Currently, when the dew point changes from -70℃ Td to -50℃ Td, the base capacitance shifts from 300 pF to 305 pF, surpassing all polymer dew point capacitors on the market.
II. Performance Advantages
n Innovative polymer thin-film sensor technology
n High accuracy measurement up to +/-2℃ Td
n Automatic heating calibration function
n Ultra-fast response speed and excellent long-term stability
n Resistant to condensation, particulate contamination, oil vapor, and most chemicals
n Multi-point temperature compensation calibration before factory shipment
n Excellent anti-interference capability
n IP65 protection rating, providing excellent protection even in harsh environments
n Low-humidity sensitivity over a hundred times greater than ordinary humidity-sensitive capacitors
n The polymer material is resistant to acids, alkalis, and water immersion, with minimal requirements for the operating environment—use with confidence
Measurement parameters
Dew point measurement range
Measured gas temperature range: -80～+20℃ Td (atmospheric dew point), -40～+60 ℃
Measurement accuracy
Dew point accuracy (air or nitrogen): ±2℃ Td (standard)
Response time 63% [90%], at gas temperature of +20℃ and pressure of 1 bar
-60 -> -30℃Td
-30 -> -60℃Td
Output: 20 S[40 S ]
5min[20min]
Main Application Areas
- Compressed Air Systems — Monitor dew point in compressed air lines to prevent condensation and corrosion, ensuring air quality for pneumatic tools and processes.
- Industrial Drying Processes — Ensure optimal moisture levels in drying ovens and air dryers to improve product quality and efficiency.
- Pharmaceutical Manufacturing — Maintain strict humidity control in production areas to comply with regulatory standards and protect sensitive materials.
- Electronics and Semiconductor — Prevent moisture-induced defects in electronic components and semiconductor fabrication by monitoring clean dry air.
