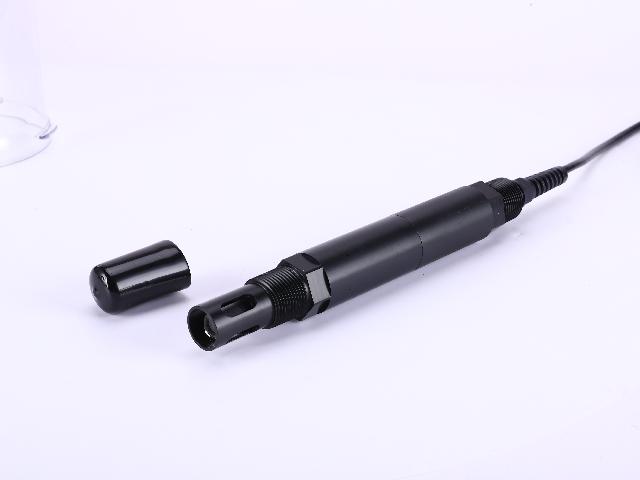

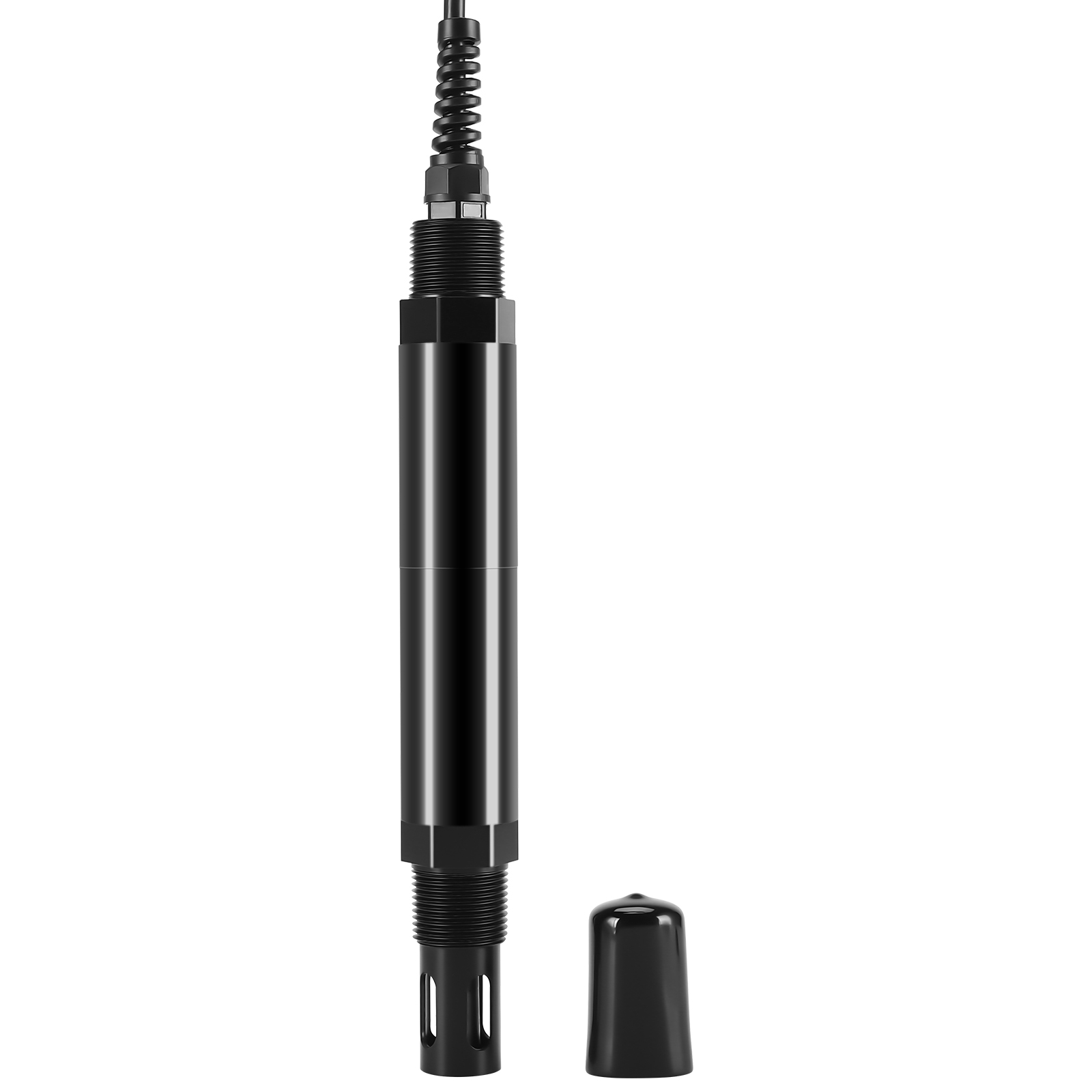

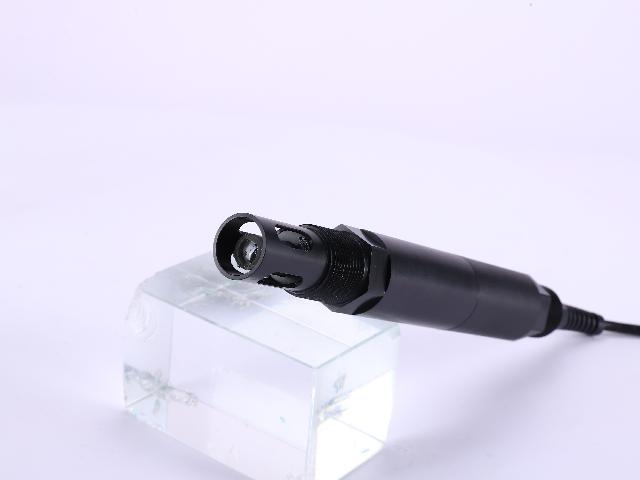

Online Residual Chlorine Digital Sensor with Automatic pH Compensation + Temperature Compensation, Long Life - AMT/YL-300
Measurement range: 0..2 mg/l: 0..20 mgA
Measurement principle: Constant voltage method (dual platinum ring)
Accuracy: +2%FS
Response time: 90% under 90 seconds
Temperature measurement range: 0-60°C
Power supply: DC9-30V (12V recommended)
Output: 4-20mA and RS485
Pressure resistance range: 0-1bar
Calibration method: laboratory comparison method
Medium flow rate: 15-30L/h
Shell material: ABS
Connection thread: M39*1.5
Signal cable length: 5m (customizable)
Protection rating: IP68
Product Introduction
Online-residual-chlorine-water-quality-sensor-21
7090221
AMT/YL-300
Smart residual chlorine sensor
is an advanced device specially designed for precise detection of residual chlorine concentration. Integrating cutting-edge technology, it is committed to
providing efficient and reliable residual chlorine detection solutions for multiple fields such as environmental monitoring and food safety testing. With its outstanding performance, in complex and diverse
stands out in application scenarios, becoming a key line of defense for protecting the ecological environment and human health.
Measurement range: 0..2 mg/l: 0..20 mgA
Measurement principle: Constant voltage method (dual platinum ring)
Accuracy: +2%FS
Response time: 90% under 90 seconds
Temperature measurement range: 0-60°C
Power supply: DC9-30V (12V recommended)
Output: 4-20mA and RS485
Pressure resistance range: 0-1bar
Calibration method: laboratory comparison method
Medium flow rate: 15-30L/h
Shell material: ABS
Connection thread: M39*1.5
Signal cable length: 5m (customizable)
Protection rating: IP68
Main Application Areas
- Drinking Water Treatment — Monitoring residual chlorine levels in municipal water supplies to ensure disinfection effectiveness and compliance with safety standards.
- Wastewater Treatment — Controlling chlorine dosing in effluent to meet discharge regulations and protect receiving water bodies.
- Swimming Pool & Spa — Maintaining optimal chlorine levels for sanitation and bather comfort in recreational water facilities.
- Industrial Cooling Water — Preventing biofouling in cooling towers and pipelines by monitoring and controlling chlorine concentration.
