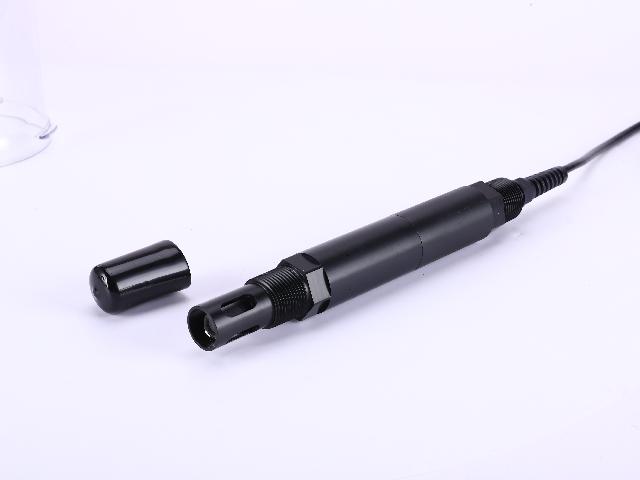

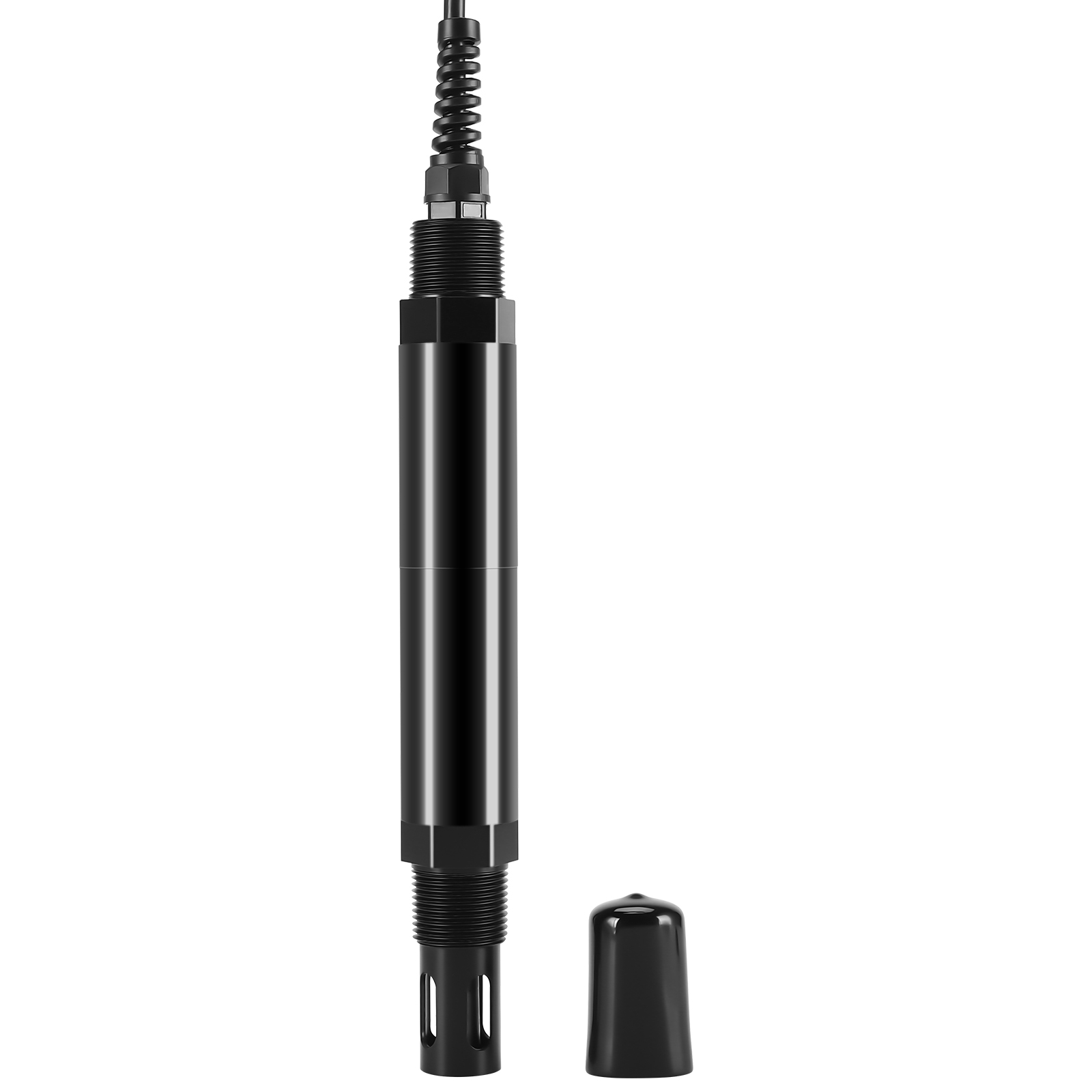

Industrial online residual chlorine monitoring sensor with 4-20mA+RS485 dual output - AMT/YL-300
Measurement range: 0..2 mg/l: 0..20 mgA
Measurement principle: Constant voltage method (dual platinum ring)
Accuracy: +2%FS
Response time: 90% under 90 seconds
Temperature measurement range: 0-60°C
Power supply: DC9-30V (12V recommended)
Output: 4-20mA and RS485
Pressure resistance range: 0-1bar
Calibration method: laboratory comparison method
Medium flow rate: 15-30L/h
Shell material: ABS
Connection thread: M39*1.5
Signal cable length: 5m (customizable)
Protection rating: IP68
Product Introduction
Online-residual-chlorine-water-quality-sensor-21
7090221
AMT/YL-300
Smart residual chlorine sensor
is an advanced device specially designed for precise detection of residual chlorine concentration. Integrating cutting-edge technology, it is committed to
providing efficient and reliable residual chlorine detection solutions for multiple fields such as environmental monitoring and food safety testing. With its outstanding performance, in complex and diverse
stands out in application scenarios, becoming a key line of defense for protecting the ecological environment and human health.
Measurement range: 0..2 mg/l: 0..20 mgA
Measurement principle: Constant voltage method (dual platinum ring)
Accuracy: +2%FS
Response time: 90% under 90 seconds
Temperature measurement range: 0-60°C
Power supply: DC9-30V (12V recommended)
Output: 4-20mA and RS485
Pressure resistance range: 0-1bar
Calibration method: laboratory comparison method
Medium flow rate: 15-30L/h
Shell material: ABS
Connection thread: M39*1.5
Signal cable length: 5m (customizable)
Protection rating: IP68
Main Application Areas
- Water Treatment Plants — Monitoring residual chlorine levels in drinking water and wastewater treatment processes to ensure disinfection efficacy and regulatory compliance.
- Swimming Pools and Spas — Continuous measurement of free chlorine in pool water to maintain safe and hygienic conditions for swimmers.
- Food and Beverage Industry — Ensuring sanitization and quality control by monitoring chlorine concentration in process water and cleaning solutions.
- Environmental Monitoring — Tracking chlorine levels in natural water bodies or industrial effluents to assess pollution and environmental impact.
