Can online turbidity water quality sensors measure suspended solids? Turbidity SS monitoring - AMT-ZD300
Product name Intelligent Turbidity Sensor Product model AMT-ZD300
Measurement parameter Turbidity Measurement principle 90° scattered light method
Measurement range 0～10NTU, 0...4000NTU, 0～0-20mg/L Measurement accuracy 1%FS
Resolution 0.01NTU (<10), 0.1NTU (>10), 0.01mg/L Response time T90≤2s
Operating temperature 0～60℃ Pressure resistance 1MPa
Power consumption <0.2W Protection rating IP68
Calibration method 1-point calibration or 2-point calibration Supply voltage 7~28V DC
Installation specifications Front and rear NPT3/4" threads (custom threads available upon request)
Product Introduction
Online-turbidity-sensor-01
70912001
AMT-ZD300

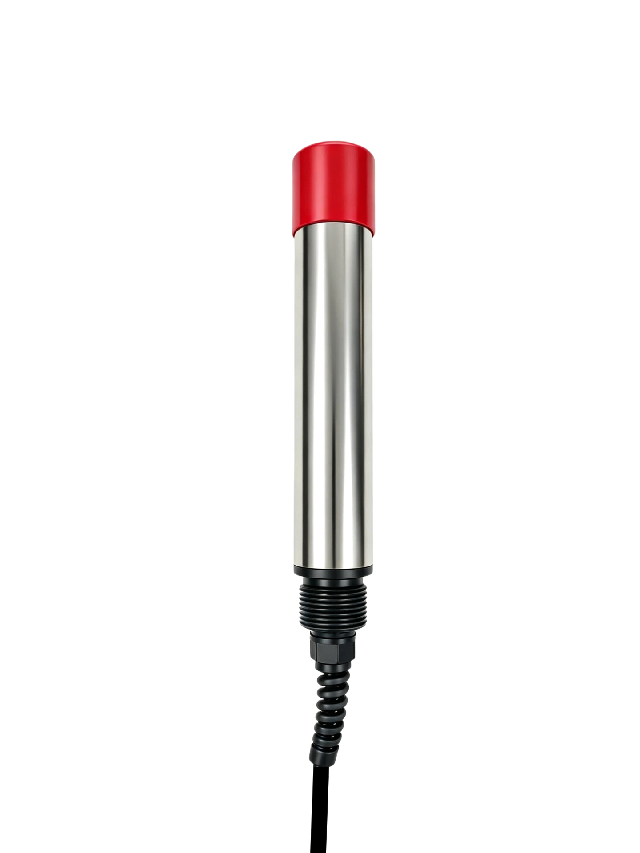

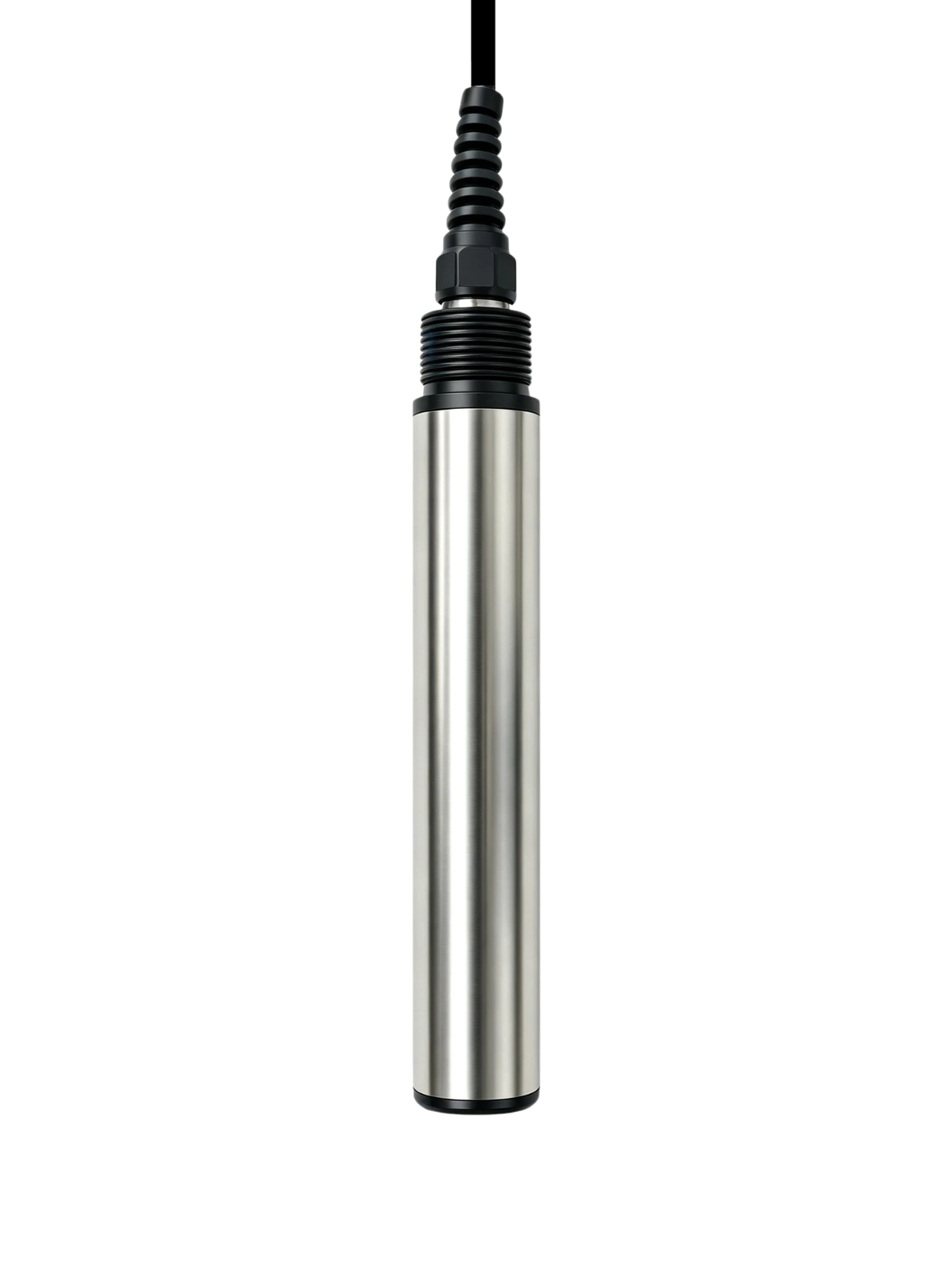

Online Water Quality Turbidity Sensor
It is an intelligent water quality sensor using RS485 communication interface and standard Modbus protocol. The sensor uses infrared LED of a specific wavelength as the light source, is not affected by the color of the water sample, adopts the 90° scattering method, and complies with ISO 7027 international standard and USEPA
180.1 US Environmental Protection Standard.
The AMT-ZD300 intelligent turbidity sensor has advantages such as self-cleaning, maintenance-free, and strong anti-interference capability. It is widely used in surface water, municipal sewage, industrial wastewater, sewage treatment, water plants, process control, and other fields.
1.2 Functional features
Dual signal output: Modbus 485 and 4-20mA output simultaneously, directly connecting to computers and PLC systems.
Customizable measurement range: (0~10NTU, 0~100NTU, 0~1000NTU, 0~4000NTU, 0-20mg/L).

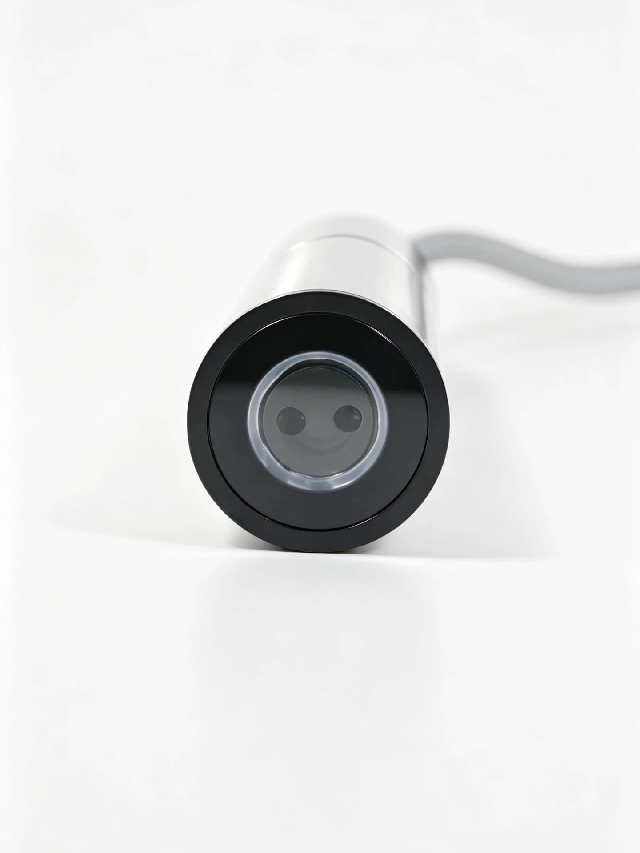

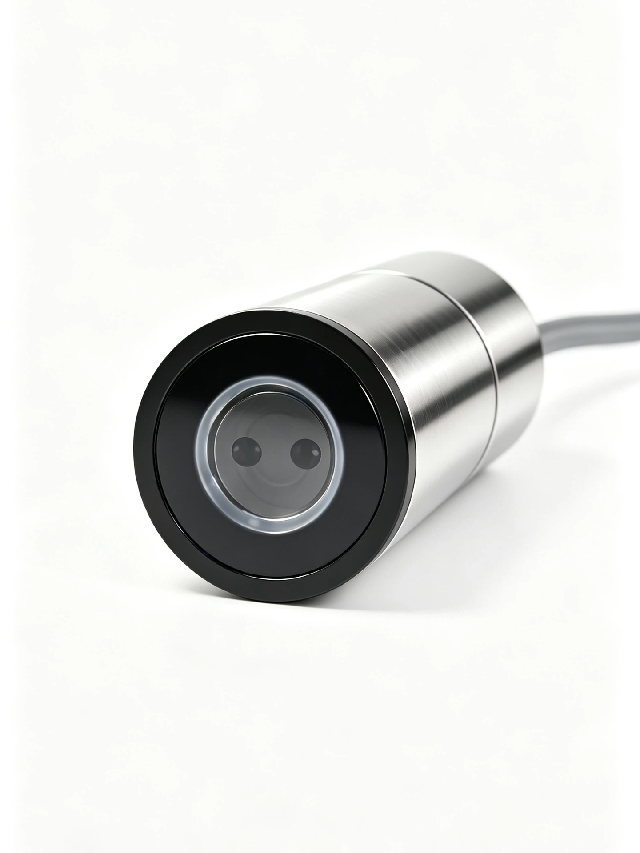

Made of special materials: sapphire measurement window, resistant to wear from small particles and sand.
Advanced measurement principle: advanced 90° scattered light method.
Excellent protection: IP68 protection standard.
Low drift, small size, fast response.
Easy installation, simple, direct reading, setting, and calibration on computer and mobile phone.
Product name Intelligent Turbidity Sensor Product model AMT-ZD300
Measurement parameter Turbidity Measurement principle 90° scattered light method
Measurement range 0～10NTU, 0...4000NTU, 0～0-20mg/L Measurement accuracy 1%FS
Resolution 0.01NTU (<10), 0.1NTU (>10), 0.01mg/L Response time T90≤2s
Operating temperature 0～60℃ Pressure resistance 1MPa
Power consumption <0.2W Protection rating IP68
Calibration method 1-point calibration or 2-point calibration Supply voltage 7~28V DC
Installation specifications Front and rear NPT3/4" threads (custom threads available upon request)
Main Application Areas
- Drinking Water Treatment — Monitor turbidity in raw water, sedimentation, and filtration stages to ensure compliance with drinking water standards.
- Wastewater Treatment — Measure suspended solids and turbidity in aeration tanks, effluent, and return sludge for process control.
- Industrial Process Water — Control water quality in cooling towers, boilers, and manufacturing processes to prevent scaling and corrosion.
- Environmental Monitoring — Track turbidity levels in rivers, lakes, and coastal waters for pollution assessment and ecological studies.
- Aquaculture — Ensure optimal water clarity for fish and shrimp farming by monitoring suspended solids and turbidity.
