Product Introduction
German PreSens Non-invasive pH Sensor SP-HP5 Description:

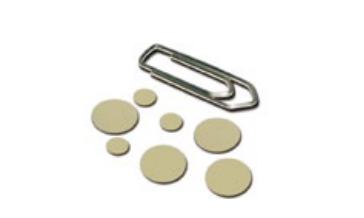

The non-invasive pH sensor is optimized for physiological solutions and cell culture media. These sensor spots can be installed in transparent containers made of plastic or glass. Plastic containers with integrated pH sensors are beta-irradiated and pre-calibrated, ready-to-use. pH is measured non-invasively through the container wall. The new self-adhesive sensor spots make integration easy for the user.
German PreSens Non-invasive pH Sensor SP-HP5 Features:
Sampling-free online monitoring
Optimized for cell culture media and physiological solutions
Suitable from microliter to production scale
Non-contact, non-destructive measurement
Pre-calibrated, ready-to-use
Integrated into beta-irradiated disposables
Bags and single-use bioreactors
German PreSens Non-invasive pH Sensor SP-HP5 Applications:
Plastic and glass
From microliter to production scale
Indoor and outdoor
Industry and research
German PreSens Non-invasive pH Sensor SP-HP5 Specifications:
| Specifications |
Sensor Spot (SP-HP5) |
pH Nice Port |
| Measurement range |
5.5 - 8.5 pH |
|
| Resolution |
Conditions: pH = 7: ± 0.01 pH |
Conditions: pH = 7: ± 0.02 pH |
| Accuracy |
± 0.05 ± 0.10 |
± 0.05 |
| Drift |
Conditions: pH = 7: < 0.005 pH/day (sampling interval 1 min, may vary with system settings) |
|
| Temperature measurement range |
+5°c+50°C |
|
| Response time (t90) |
〈120sec |
|
| Compatibility |
Water-soluble, ethanol (up to 10% v/v), methanol (up to 10% v/v), pH 2-10 |
|
