Product Introduction

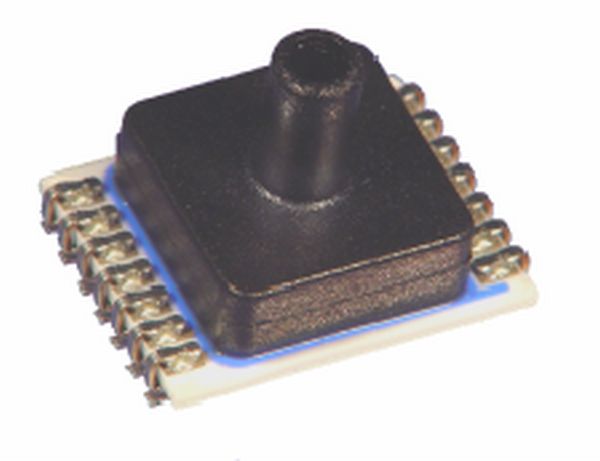

1. Pressure Sensor MS5536-60C Product Description
The MS5536-60C is a high-resolution pressure sensor, factory calibrated, consisting of a silicon piezoresistive pressure sensing element and an ADC IC. The sensor communicates with an external microcontroller via a 3-wire serial interface, providing 16-bit digital pressure and temperature outputs, as well as 64-bit calibrated compensation coefficients for high-precision software compensation. The main features of the MS5536-60C are low power consumption and automatic standby (ON/OFF) function, allowing customers to configure sampling frequency and power consumption according to application needs. It is used in liquid level measurement, medical, air flow measurement, and HVAC applications.
2. Pressure Sensor MS5536-60C Features
16-bit ADC, SPI interface
3-wire serial interface
Low power consumption
No external components required
Factory calibrated, parameters for software compensation stored in chip
Piezoresistive silicon micro sensor
Small size
3.Pressure Sensor MS5536-60CTechnical Parameters
| Physical Material Properties | Semiconductor |
| Crystal Structure | Polycrystalline |
| Output Signal | Digital |
| Material | Mixture |
| Type | Pressure |
| Manufacturing Process | Integrated |
| Measurement Range | 0-60mbar |
| Resolution | 0.05 mbar and 0.01°C |
| Operating Voltage | 2.2 V～3.6 V |
| Operating Temperature | 0°C ～ +100°C |
