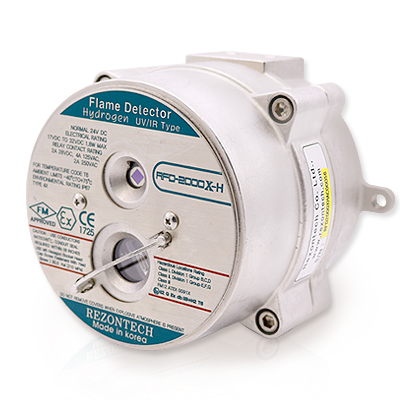

Korean Rezontech Flame Detector - RFD-2000X-H

Korean Rezontech Flame DetectorRFD-2000X-H Description:

The RFD-2000X-H is a hydrogen UV/IR flame detector.

With a wide 90-degree field of view and an effective range of 30 meters, it quickly detects fires.

With self-test diagnostics, waterproof and explosion-proof construction, it can be safely used in industrial sites such as refineries and gas facilities.

Outputs include relay, 4-20 mA, and RS-485 communication.

Korean Rezontech Flame DetectorRFD-2000X-H Features:

• UV/IR flame detector

• Excellent false alarm suppression

• Explosion-proof and dust-proof product

• Ideal for hazardous areas such as refineries, petrochemical plants, and filling stations

• Adjustable sensitivity and delay time

• Built-in self-diagnostic function for enhanced reliability

• Ideal for power plants, refineries, and filling stations

• Suitable for fire detection in general sites such as stadiums, commercial facilities, and cultural heritage sites

Korean Rezontech Flame DetectorRFD-2000X-H Specifications:

Type	UV, IR, hydrogen flame detection
Formal monitoring distance	30m
Field of view	90
Response	5 seconds
Operating temperature	-40℃ ~ +75℃
Storage temperature	-50℃ ~ +80℃
Dimensions	W134 x H117 x D120 (mm) W5.3 x H4.6 x D4.7 (inch)
Material	Stainless steel 316
Weight	3.4kg
Color	Metal
Conduit entry	2 X 1/2 inch NPT, M20 X 1.5
