Product Introduction

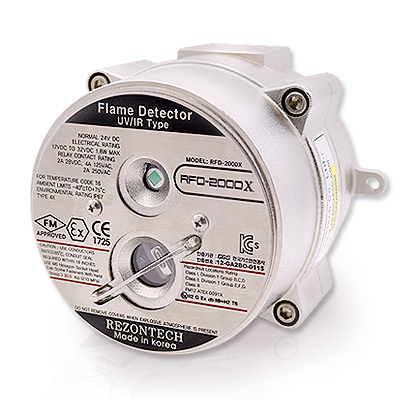

Korean Rezontech Flame DetectorRFD-2000X Description:
The RFD-2000X is a UV/IR flame detector suitable for hazardous and safe sites, indoor and outdoor applications.
With a wide 90-degree field of view and an effective range of 30 meters, it quickly detects fires.
Self-test function, waterproof and explosion-proof structure, safe for use in industrial sites such as refineries and gas facilities.
Outputs include relay, 4-20 mA, and RS-485 communication.
Korean Rezontech Flame DetectorRFD-2000X Features:
• UV/IR flame detector
• Excellent false alarm immunity
• Holds FM, ATEX, IECEx fire certifications
• Corrosion-resistant stainless steel material
• Explosion-proof and dust-proof product
• Ideal for hazardous areas such as refineries, petrochemical plants, and filling stations
• Adjustable sensitivity and delay time
• Built-in self-diagnostic function for enhanced reliability
• Applicable in hazardous sites like power plants and semiconductor manufacturing facilities, as well as general sites such as stadiums, commercial facilities, and cultural heritage sites
Korean Rezontech Flame DetectorRFD-2000X Specifications:
| Type |
UV |
| Official Monitoring Distance |
30m |
| Field of View |
90 |
| Operating Temperature |
-40℃ ~ +75℃ |
| Storage Temperature |
-50℃ ~ +80℃ |
| Specifications |
W134 x H163 x D110 (mm) W5.3 x H6.41 x D4.33 (inch) |
| Material |
Stainless Steel 316 |
| Weight |
3.4kg |
| Color |
Metal |
| Cable Entry |
2 X 1/2 inch NPT, M20 X 1.5 |
