Product Introduction

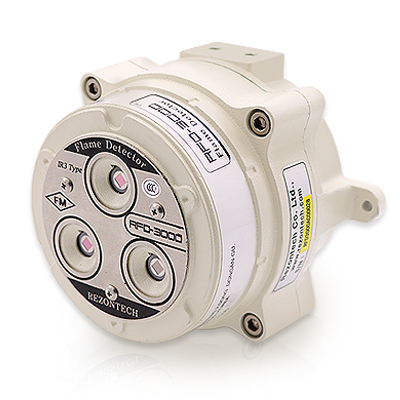

Korean Rezontech Flame DetectorRFD-3000 Description:
The RFD-3000 is a multi-spectrum infrared (IR) detector suitable for general indoor and outdoor applications.
With a wide 90-degree field of view and an effective range of 60 meters, it quickly detects fire.
Outputs include relay, 4-20 mA, and RS-485 communication.
Korean Rezontech Flame DetectorRFD-3000 Features:
• Triple wavelength infrared detector
• Excellent false alarm suppression
• Adjustable sensitivity and delay time
• Built-in self-diagnostic function for enhanced reliability
• Suitable for high-ceiling general sites such as factories, warehouses, and hangars
• Corrosion-resistant stainless steel material
• Adjustable sensitivity and delay time
Korean Rezontech Flame DetectorRFD-3000 Specifications:
| Type |
Triple wavelength infrared (IR3), non-explosion-proof |
| Nominal monitoring distance |
200ft(60m) |
| Field of view |
90 |
| Operating temperature |
-40℃ ~ +75℃ |
| Storage temperature |
-50℃ ~ +80℃ |
| Specifications |
W150 x H125 x D103 mm W5.9 x H4.9 x D4.1 Inch |
| Material |
Aluminum alloy |
| Weight |
1.2kg |
| Color |
Ivory |
| Cable entry |
2 x 1/2 inch PF |
