Product Introduction
Korean Rezontech Flame Detector RFD-3000X Description:

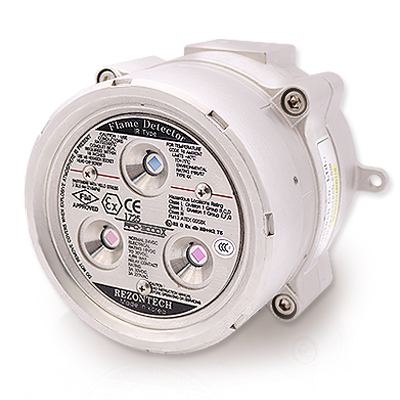

IR3 Flame Detector | RFD-3000X
The RFD-3000X is a multi-spectrum infrared (IR) detector suitable for hazardous and safe sites, both indoor and outdoor applications.
With a wide field of view of 90 degrees and an effective performance range of 60 meters, it quickly detects fire.
Self-diagnostic test function, waterproof and explosion-proof structure, safe for use in industrial sites such as refineries and gas facilities.
Outputs include relay, 4-20 mA output, and RS-485 communication.
Korean Rezontech Flame Detector RFD-3000X Features:
• Triple-wavelength infrared detector
• Holds fire certifications such as FM, ATEX, IECEx, CCCF, NEPSI, KFI, KGS
• Excellent false alarm suppression
• Explosion-proof and dust-proof product
• Ideal for hazardous areas such as refineries, petrochemical plants, and filling stations
• Corrosion-resistant stainless steel material
• Adjustable sensitivity and delay time
Korean Rezontech Flame Detector RFD-3000X Specifications:
| Type |
Triple-wavelength UV/IR (IR3 Type), outdoor type, explosion-proof |
| Official monitoring distance |
60m(FM), 50m(KFI) |
| Field of view |
90°, conical |
| Operating temperature |
-45~+75℃ |
| Explosion-proof rating |
Ex d IIB+H2 T5 IP66/67(KGS) II 2 G Ex db IIB+H2 T5 Ta= -40°C to 75°C IP66 / IP67 (ATEX) |
| Output signal |
RELAY |
| Material |
Stainless steel 316 |
| Cable entry |
2 x 1/2 inch NPT, M20 X 1.5 |
| Specifications |
W134 x H117 x D110 mm W5.3 x H6.41 x D4.3 Inch |
