Semiconductor Gas Sensor Gas Leak Alarm Detects LP Propane with Figaro TGS2618AG-2-CHX-M2618(D) Description:

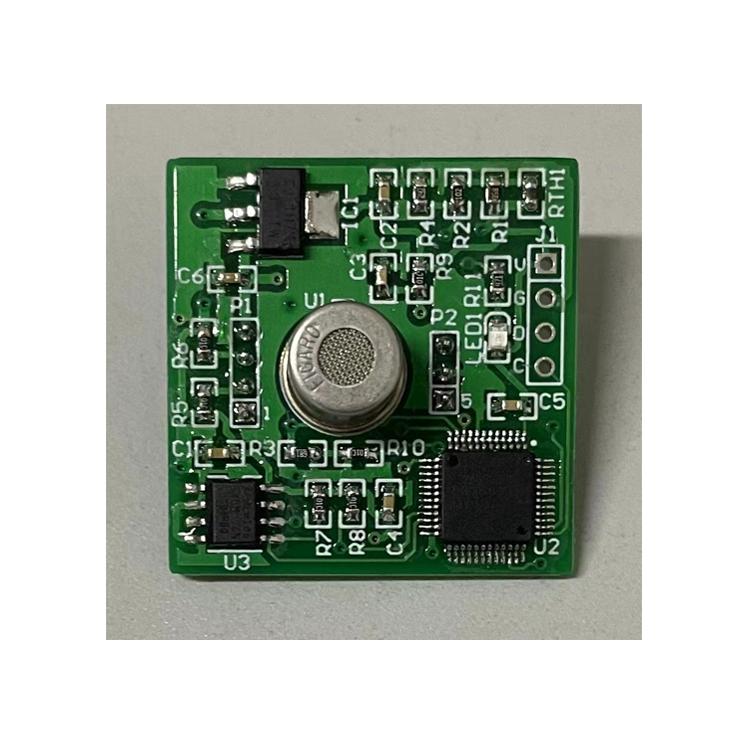

The AG-2-CHX-M2618(D) sensor module consists of a semiconductor sensor and a data acquisition processing board. The module is equipped with the Figaro semiconductor sensor TGS2618-D, enabling gas concentration detection under sampling circuit control, featuring good durability and high stability. This module can provide USART output proportional to the detected concentration (the module contains a memory with pre-calibrated data stored at the factory). Additionally, the module can detect sensor disconnection and short circuit faults. The module has a wide operating temperature range.
Furthermore, it has low cross-sensitivity to organic gases, better tolerance to silicon compounds, and is more suitable for harsh environments, making it suitable for gas detection in civil and industrial applications.
Semiconductor Gas Sensor Gas Leak Alarm Detects LP Propane with Figaro TGS2618AG-2-CHX-M2618(D) Parameters:
| Product Model |
AG-2-CHX-M2618(D) |
| Detected Gas |
Propane gas |
| Detection Principle |
Semiconductor |
| Measurement Range |
0 ~ 20% LEL |
| Alarm Point |
8% LEL |
| Alarm Point Error |
± 3% LEL |
| Response Time (T90) |
≤ 30 seconds |
| Operating Voltage |
5V±0.2V DC |
| Power Consumption |
≤1.5W |
| Output Method |
USART |
| Operating Temperature |
40˚C ~+70˚C |
| Operating Humidity |
20~95%RH (anti-condensation) |
| Operating Pressure |
1 ± 0.1 atm |
| Storage Temperature |
-10℃ ~ +40℃ |
| Storage Humidity |
20~95% RH |
