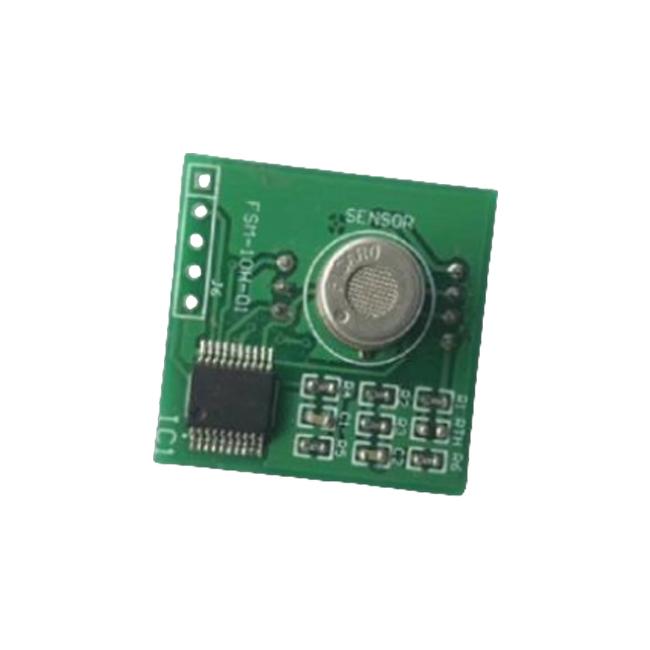

Semiconductor Gas Sensor Module Methane Hydrogen H2 with Figaro TGS2610-D00AG-2-H2-M2610(D) Description:
The AG-2-H2-M2610(D) sensor module consists of a semiconductor sensor and a data acquisition and processing board. The module uses the Figaro TGS26 series sensor as the sensing element, and detects gas concentration under the control of the sampling circuit. The module is equipped with the Figaro semiconductor sensor TGS2610, featuring good durability and high stability. This module can provide a PWM output proportional to the detected concentration (the module contains a memory with pre-calibrated data stored at the factory). Additionally, the module can detect sensor disconnection and short-circuit faults, and has a wide operating temperature range.
Furthermore, for detecting methane, propane, hydrogen, etc., it has low cross-sensitivity to organic gases, better tolerance to silicon compounds, and is more suitable for harsh environments.
Semiconductor Gas Sensor Module Methane Hydrogen H2 with Figaro TGS2610-D00AG-2-H2-M2610(D) Parameters:
| Product Model |
AG-2-H2-M2610(D) |
|
| Gas Sensor |
TGS2610-D00 (Semiconductor type) |
|
| Detected Gas |
Hydrogen |
|
| Range |
0 ~ 4,000ppm |
|
| Error |
± 300ppm |
|
| Voltage Output |
PWM Output (2kHz) |
|
| Fault |
Fault:H， Monitoring:L |
|
| Response Time(T90) |
≤ 30 Seconds |
|
| OperatingConditions |
40˚C ~+70˚C, 20~95%RH (anti-condensation) |
|
| Storage Conditions |
-10˚C ~+80˚C, 20~95%RH |
|
| Input Voltage（VIN）
|
5.0±0.2V DC |
|
| Power Consumption |
≤1.5W |
|
| Net Weight |
15g or less |
|
| Dimensions |
26×27 mm |
|
