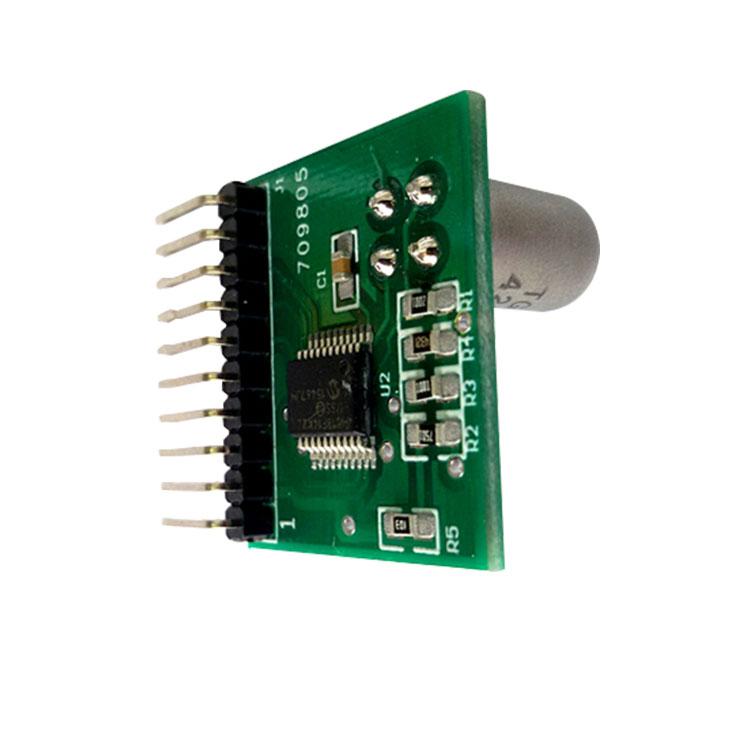

Semiconductor sensor module Methane CH4 natural gas alarm with Figaro TGS 2611 TGS2611 - AG-2-CH4-MA2611(D)

Semiconductor sensor module Methane CH4 natural gas alarm with Figaro TGS 2611 TGS2611-E00AG-2-CH4-MA2611(D) description:

The AG-2-CH4-MA2611(D) methane gas alarm sensor module consists of a semiconductor sensor and a data acquisition and processing board. The module is equipped with Figaro semiconductor sensor TGS2611-E00, with a filter that eliminates interfering gases such as alcohol, thus providing higher selectivity to methane gas and faster response. The pre-calibrated TTL asynchronous communication interface allows users to read real-time gas concentration with very simple commands, or set different alarm thresholds via communication. When the gas concentration reaches the set value, an alarm output signal is automatically generated on the Alarm terminal. No expensive calibration is required, and the module greatly saves development and production costs, making it easier and simpler for users to manufacture civilian natural gas alarms.

Semiconductor sensor module Methane CH4 natural gas alarm with Figaro TGS 2611 TGS2611-E00AG-2-CH4-MA2611(D) parameters:

Product model	AG-2-CH4-M2611(D)
Detection gas	CH4 methane gas
Detection principle	Semiconductor
Range	0 ~ 20% LEL
Accuracy	≤±2.5% LEL (4000ppm~5000ppm)
	≤ ± 5% LEL FS
Response time(T90)	≤ 30 seconds
Operatingvoltage	5V±0.2V DC
Power consumption	≤0.5W
Output method	UART, Alarm output
Operating temperature	-10℃~+55℃
Operating humidity	25~95%RH
Operating pressure	1 ± 0.1 Standard atmospheric pressure
Storage temperature	-25˚C ~+60˚C
Storagehumidity	20~95% RH
