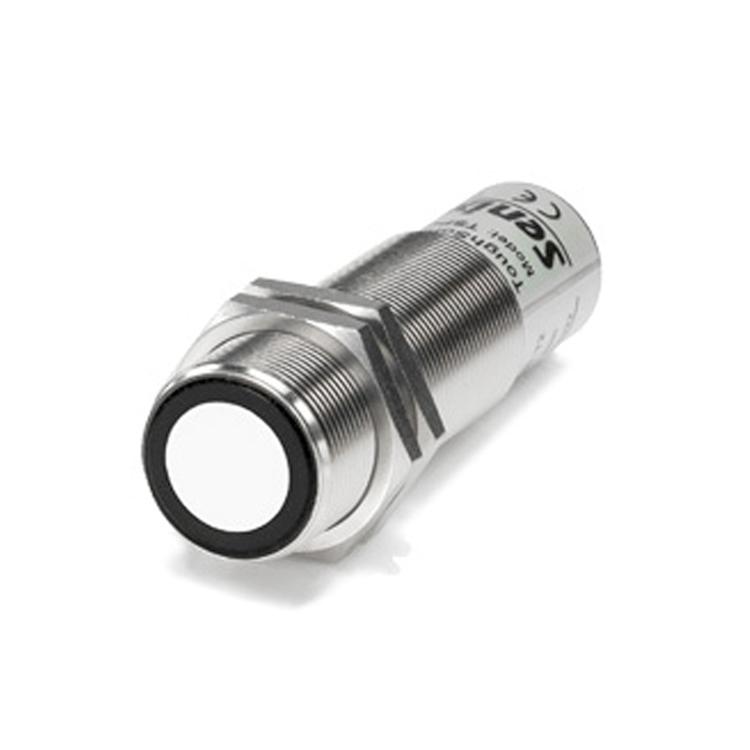

US SENIX ToughSonic 14 Ultrasonic Level Sensor - TSPC-30S1-232/485

I.ToughSonic 14 Ultrasonic Level SensorProduct Description:
The ToughSonic 14 ultrasonic sensor has a sensing range of 14 feet (4.3 meters). Like all ToughSonic sensors, it is rugged and easy to use in harsh industrial environments. It is fully submersible, corrosion-resistant, impact-resistant, and tough. It can also be fully configured using our SenixVIEW software. ToughSonic 14s include our famous 'teach' feature for push-button configuration. This compact sensor is used worldwide in remote level systems, heavy equipment, factory automation applications, and more. This is one of our most popular sensors.

II.ToughSonic 14 Ultrasonic Level Sensor Features and Benefits:
Sensing range: 4.3m
Companion PC software - SenixVIEW, sensor interface, timing parameters, filters, and modes are all configurable
Multiple output options: analog voltage, current, serial, switch output
Sensitivity can be optimized via PC software
Unaffected by optical factors
IP68 protection
Quick installation
Cost savings, reducing investment in PLCs, delay circuits, and delay relays

III.ToughSonic 14 Ultrasonic Level Sensor Applications:
Level or height detection
Distance-proximity detection
Target detection
Factory automation applications

IV.ToughSonic 14Ultrasonic Level Sensor Specifications:
1. Max Range: 4.3 meters
2. Optimum Range: 3 meters
3. Operating Temperature: -40 ~ 158°F (-40 ~ 70°C)
4. Operating Humidity: 0 ~ 100% operation
5. Protection: NEMA-4X, NEMA-6P, IP68
6. Sensor: Rugged piezoelectric
7. Compensation: Temperature compensated
8. Resolution: Digital: 0.0034 inches (0.086 mm); Analog: 4099 steps (0-10 VDC), 3279 steps (4-20 mA)
9. Repeatability: Nominal 0.2% of range at constant temperature, affected by target, distance, and environment
10. Update Rate: 20 Hz (50 ms), adjustable via SenixVIEW; also affected by SenixVIEW filter selection
