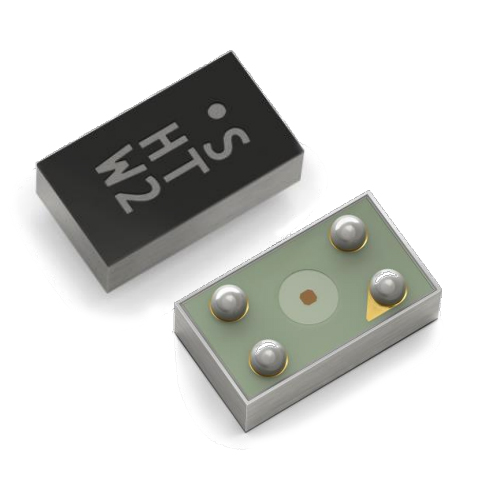

Swiss Sensirion Digital Temperature and Humidity Sensor - SHTW2
The SHTW2 is Sensirion's second-generation WLCSP (Wafer-Level Chip Scale Package) humidity sensor, providing a complete digital temperature and humidity sensor system in an ultra-compact size that can be integrated into almost any application. The SHTW2 uses flip-chip packaging, a mature technology that represents a simple and very small packaging method for semiconductor chips.
Product Introduction
1. Swiss Sensirion Digital Temperature and Humidity Sensor SHTW2 Product Description:
The SHTW2 is Sensirion's second-generation WLCSP (Wafer-Level Chip Scale Package) humidity sensor, providing a complete digital temperature and humidity sensor system in an ultra-compact size that can be integrated into almost any application. The SHTW2 uses flip-chip packaging, a mature technology that represents a simple and very small packaging method for semiconductor chips. With a footprint of only 1.3 x 0.7 x 0.5 mm³, the SHTW2 is about one-seventh the size of similar DFN humidity sensors, opening up a new category of ultra-miniature humidity sensors and ushering in countless new opportunities in the IoT, wearable, and mobile markets.
The SHTW2 is based on Sensirion's CMOSens® technology, providing a complete sensor system on a single chip, including a capacitive humidity sensor, a bandgap temperature sensor, analog and digital signal processing, an A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode.
The sensor measures humidity from 0 to 100 %RH and temperature from -30°C to 100°C, with typical accuracy of ±3 %RH and ±0.4°C. An operating voltage of 1.8 V and low power consumption make the SHTW2 humidity sensor suitable for wearable applications with extremely stringent power requirements. With Sensirion's industry-recognized high quality and reliability, as well as constant accuracy over a wide measurement range, the SHTW2 humidity sensor offers unprecedented cost-performance. Tape and reel packaging and standard SMD assembly processes make the SHTW2 ideal for high-volume applications.
2. Swiss Sensirion Digital Temperature and Humidity Sensor SHTW2 Product Applications:
Data Loggers
Transmitters
Automated Process Control
Automotive Industry
Building Control & HVAC
Power
Measurement and Testing
Pharmaceutical Industry
3. Swiss Sensirion Digital Temperature and Humidity Sensor SHTW2 Product Parameters:
| Interface |
I²C |
| Supply Voltage |
1.8 V |
| Voltage Range |
2.1 - 3.6 V |
| Power Consumption |
2µW (low power mode, reading once per second) |
| Measurement Range (Humidity) |
0 - 100% RH |
| Measurement Range (Temperature) |
-30 - 100°C (-22 - 212°F) |
| Package Type |
Flip-Chip Wafer-Level Chip Scale Package (WLCSP) |
