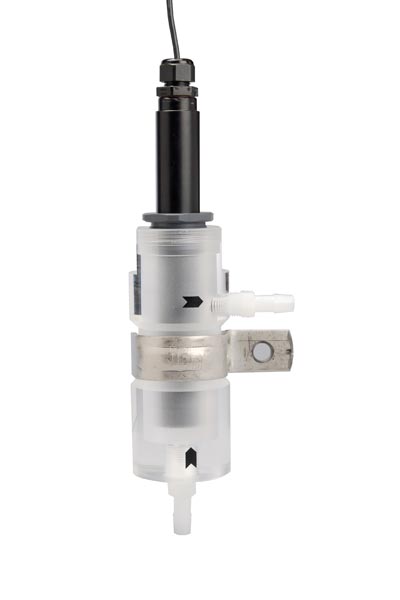

US Sensorex Chlorine Dioxide Sensor - CLD502, CLD505, and CLD510
Amperometric Sensor Technology
Real-Time Continuous Measurement
Range: 0-2 or 0-10ppm
Built-in Temperature Compensation
Large Volume Electrolyte Reservoir
Easy Replacement of Membrane and Electrolyte
Product Introduction
1. Description of Chlorine Dioxide Sensors CLD502, CLD505, and CLD510
The CLD series (chlorine dioxide sensors) uses advanced amperometric measurement technology. Designed for water treatment disinfection applications, and for use with chlorine dioxide, pools, etc., these sensors are available in three ranges to detect chlorine dioxide concentration. The detection ranges of CLD502, CLD505, and CLD510 are 0-2ppm, 0-5ppm, and 0-10ppm respectively.
The chlorine dioxide sensor outputs a 4-20mA signal, adjusted according to ranges 0-2, 0-5, or 0-10ppm. The membrane cap and fill solution are easy to replace, greatly extending sensor life.
The chlorine dioxide sensor can be installed with a flow cell for new installations, or used to replace other chlorine dioxide sensors with 4-20mA output. (Please consult us for compatibility.)
A flow meter (FM001) is available to help provide consistent flow, thereby enhancing system stability.
2. Features of Chlorine Dioxide Sensors CLD502, CLD505, and CLD510
Amperometric sensor technology
Real-time continuous measurement
Range: 0-2 or 0-10ppm
Built-in temperature compensation
Large volume electrolyte reservoir
Easy replacement of membrane and electrolyte
3. Technical Specifications of Chlorine Dioxide Sensors CLD502, CLD505, and CLD510
Measurement Range: 0-2ppm (CLD-502), 0-5ppm (CLD-505), or 0-10ppm (CLD-510) ClO2
pH Range: 4-11
Body Material: PVC
Membrane Cap Material: PVC housing, proprietary membrane
Temperature Range: 0 – 45°C
Pressure: 14.7 psig (1 Bar)
Temperature Compensation: Integrated
Cable Length: 10 feet, 2-wire, tinned leads
Process Connection: Flow cell 1/4 inch FNPT threads
Output: 4-20mA
Flow Rate: Minimum 0.2 gpm (45 l/hr), Maximum 0.6 gpm (135 l/hr)
Supply Voltage: 12-24V DC, 250mA minimum
Cross Sensitivity: Ozone, monochloramine
This product series includes: CLD502, CLD510, FCLA-5015 thru FCLA-5018, FC72, FM001
4. Typical Applications of Chlorine Dioxide Sensors CLD502, CLD505, and CLD510
Industrial wastewater
Cooling water
Bottled rinse water
Agricultural irrigation water
