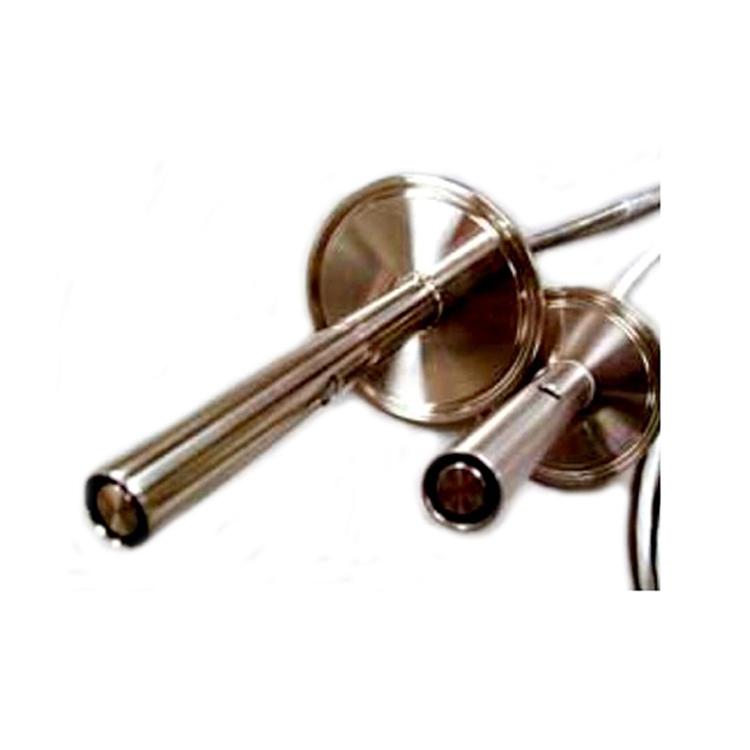

US Sensorex sanitary flange conductivity sensor - CS615/CS620

CS615/CS620 seriesSanitary flange typeConductivity sensorDetailed introduction

Models: CS615, CS615TC, CS620, CS620TC

Features of CS615/CS620 series conductivity sensors
All 316 stainless steel construction
Automatic temperature compensation
Cell constants of 0.01, 0.1, and 1.0
1"-1.5" and 2" tri-clamp flanges available
Sensors can be steam sterilized

These sensors are specially designed with 1", 1.5", and 2" tri-clamp flange connections for installation, suitable for food (beverages, dairy, candy, etc.), pharmaceutical, and other applications. These sensors are manufactured to meet CIP standards and steam sterilization.

Two flange sizes are available (1-1.5 inch and 2 inch). Model CS615 uses 1-1.5 inch flanges, and model CS620 uses 2 inch flanges. Optional temperature compensation and cell constants can accommodate many special instruments.

CS615/CS620 series conductivity sensorsSpecifications:
Cell constant: K value = 0.01, 0.1, 1.0
Materials: 316 stainless steel, PTFE, EPDM
Max temperature: 130°C
MaxPressure: 150 PSIG
Temperature compensation: (user specified temperature compensation option) PT1000, PT100
Process connection: sanitary flange

CS615/CS620 series conductivity sensorsOrdering information
Standard cable length is 10 feet with tinned copper wire terminals. For longer cable lengths, specify the cable length (if not 10 feet). When ordering, also specify the temperature compensation value and electrode constant (K=0.01 or 0.1 or 1.0).
Sensors
CS615 1" or 1.5" conductivity sensor
CS615TC 1" or 1.5" ATC conductivity sensor
CS620 2" conductivity sensor
CS620TC 2" ATC conductivity sensor
