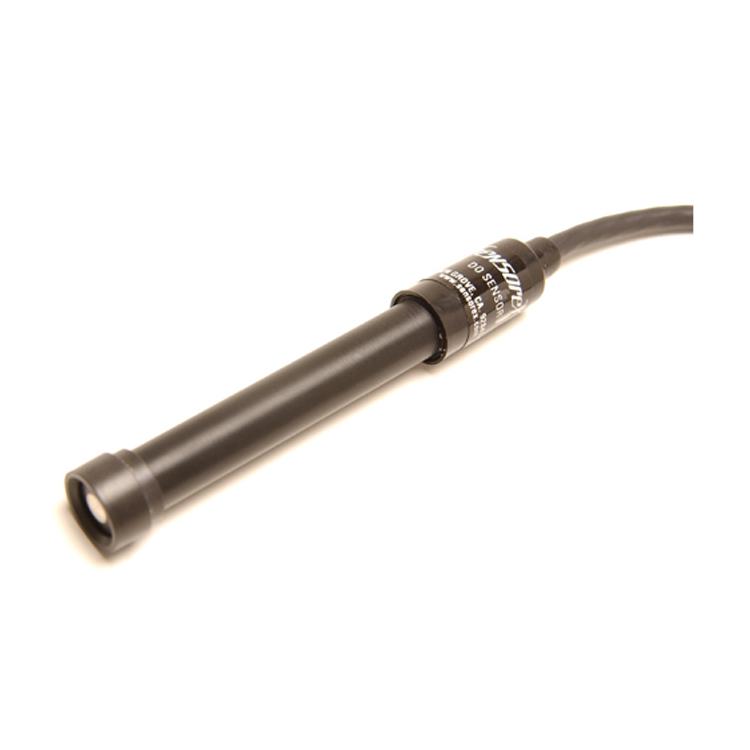

US Sensorex Water Quality Dissolved Oxygen Sensor (Laboratory Dissolved Oxygen Electrode) - DO1200/H, DO1200/T
Range: 0-20 mg/L
Body Material: Epoxy and Noryl
Max Temperature: 50°C
Saturation Output: HDPE = 47mV +/- 9mV; PTFE = 33mV +/- 9mV
Pressure: 0-100 psig (7.5 Bar)
Product Introduction
Water QualityDissolved Oxygen Sensors(Laboratory Dissolved Oxygen Electrode) Models:
DO1200/H, DO1200/T, DO1200TC/H, DO1200TC/T, 971598, 971598TC
Water Quality Dissolved Oxygen Sensor (Laboratory Dissolved Oxygen Electrode) Features
Reliable amperometric detection technology
Compact design - 12mm
For laboratory, portable, or online use
Optional integrated ATC element
Easy-to-use membrane cap
Water Quality Dissolved Oxygen Sensor (Laboratory Dissolved Oxygen Electrode) Description
DO1200 and DO1200TC use reliable amperometric technology. No warm-up required. The sensor comes with a fast-response HDPE membrane cap for portable or laboratory use. An optional PTFE membrane cap is available for online or high UV radiation applications. Refillable electrolyte when needed.
DO1200 does not have internal temperature compensation. DO1200TC can be equipped with various user-defined ATC elements. Standard cable length is 2.5 feet with one tinned lead. Longer cables and connectors are available at extra cost. For online installation, an FC75P 3/4-inch online fitting can be ordered for installation into a 3/4-inch FNPT threaded tee.
Water Quality Dissolved Oxygen Sensor (Laboratory Dissolved Oxygen Electrode) Specifications
| Range |
0-20mg/L |
| Body Material |
Epoxy and Noryl |
| Max Temperature |
50°C |
| Saturation Output |
HDPE = 47mV +/- 9mV PTFE = 33mV +/- 9mV |
| Pressure |
0-100 psig (7.5 Bar) |
| Calibration |
Single-point calibration in air |
| Response Time |
After reaching equilibrium, HDPE provides a 2mV signal in 1 minute, PTFE provides a 2mV signal in 2 minutes |
Water Quality Dissolved Oxygen Sensor (Laboratory Dissolved Oxygen Electrode)Ordering Information
DO1200 and DO1200TC dissolved oxygen sensors come with a 30-inch (76 cm) cable and tinned leads. Special cable lengths and connectors can be specified at extra cost. For online installation, you must order 971598 or 971598TC (fitting pre-installed at factory)
| Model |
|
| DO1200/H |
Dissolved oxygen sensor, HDPE membrane |
| DO1200TC/H |
Dissolved oxygen sensor, HDPE membrane, ATC – specify desired ATC element |
| DO1200/T |
Dissolved oxygen sensor, PTFE membrane |
| DO1200TC/T |
Dissolved oxygen sensor, PTFE membrane, ATC – specify desired ATC element |
| 971598 |
DO1200/H with pre-installed 3/4" NPT male fitting |
| 971598TC |
DO1200TC/H with pre-installed 3/4" NPT male fitting |
| Accessories |
|
| DO1200-KIT/H |
DO1200 maintenance kit. Includes 1 membrane cap (HDPE), 1 bottle of 30mL electrolyte, 1 10mL syringe with needle |
| DO1200-CAP/H |
Replacement membrane cap, with pre-installed HDPE membrane |
| DO1200-Cap/T |
Replacement membrane cap, with pre-installed PTFE membrane |
| DO1200-KIT/T |
DO1200 maintenance kit, includes membrane cap (PTFE), 1 bottle of 30mL electrolyte, 1 10mL syringe with needle |
| DO1202 |
Electrolyte for DO1200, 1 bottle of 4 oz |
