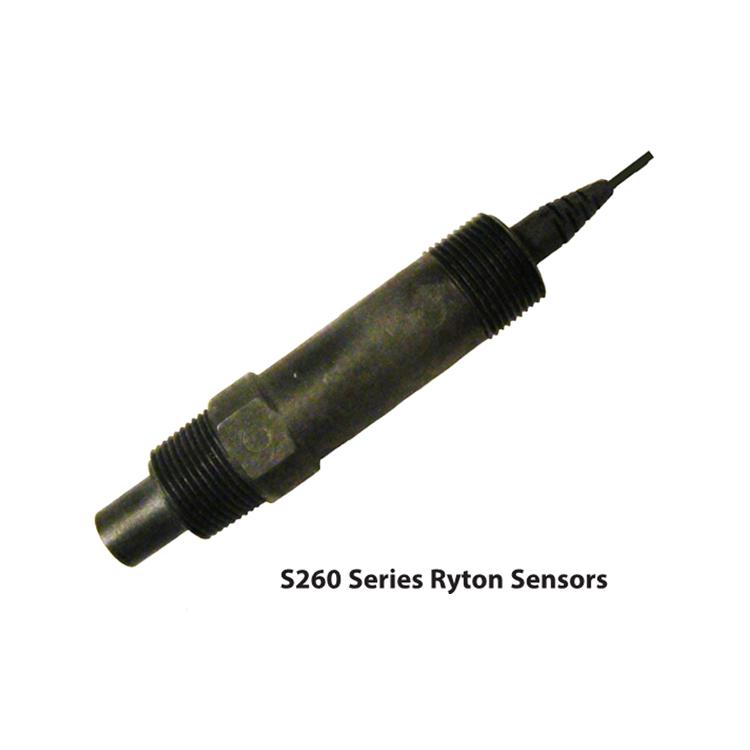

US Sensorex Water Quality Sensors (General Purpose pH Electrodes) - S200C/S260/S270 Series

1. Detailed Introduction of General Purpose pH Electrodes

Models：S200C, S200CD&S200CD-LC, S222C, S222CD, S223C, S223CD, S224C, S224CD, S265C/CD, S267C/CD, S268CD, S269CD, S271CD, S272CD&S272CDTC, S273CD&S273CDTC, S353CD, S354CD

2. Features of General Purpose pH Electrodes
This series of electrodes mainly adopts an economical design suitable for multiple applications such as online or bypass installation, featuring a sturdy spherical or flat pH glass design. Additionally, the housing materials are made of durable epoxy or Ryton materials.

This general purpose electrode is an economical multi-purpose pH electrode suitable for online or submersion installation, available in multiple models (single junction or double junction, glass bulb measuring surface or flat surface measuring scale, etc.).

3. Specifications of General Purpose pH Electrodes
Measurement Range: 0-14 pH (+/-2000 mV for ORP modules)
Housing Material: PVC, Ryton, CPVC, Polypropylene, Epoxy
Maximum Operating Temperature: 65 - 100 degrees, depending on model (PVC material only for 65 degrees)
Maximum Pressure: 100 psig
Connector: BNC (other connectors available upon request, multiple options)
Signal Cable Length: 30 inches or custom-made upon request (Cap-cable S653 required for S222 Series)
Process Connection: MNPT threads for submersion or online installation
