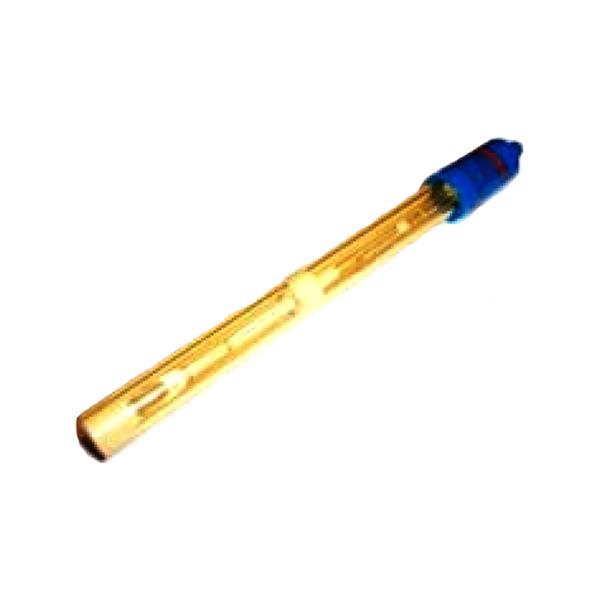

US Sensorex Water Quality Sensor (HF-resistant pH Electrode) - S350CDHF, S450CDHF
1. Material: Epoxy resin, pH glass, porous high-density polyethylene
2. Measurement range: 0-12 pH
3. Max pressure: 50°C/100 psig
4. Temperature range: 0 - 50°C
5. Response speed: 95% within 5 seconds
6. Max recommended HF%: 2% V/V
Product Introduction
HF-resistant pH Electrode
Models: S350CDHF, S353CDHF, S354CDHF, S450CDHF
HF-resistant pH Electrode Specifications:
1. Material: Epoxy resin, pH glass, porous high-density polyethylene
2. Measurement range: 0-12 pH
3. Max pressure: 50°C/100 psig
4. Temperature range: 0 - 50°C
5. Response speed: 95% within 5 seconds
6. Max recommended HF%: 2% V/V
There are some differences when using HF electrodes as noted in the specification sheet. Please note two major differences compared to standard electrodes:
1. The pH range is 0-12, not 0-14.
2. The temperature range is 0-50 degrees Celsius.
This series of electrodes is compatible with all laboratory or portable pH meters. Calibration is the same as with other standard electrodes, using standard pH buffer solutions.
HF-resistant pH electrodes are available in online installation, submersion installation, and insertion installation types, with models as follows:
S350CDHF: Epoxy resin material, length 150mm, diameter 12mm, 30-inch cable
S353CDHF: Flat surface, KYNAR material, submersion installation pH electrode
S354CDHF: Flat surface, chlorinated polyvinyl chloride, submersion installation pH electrode with protective tip
S450CDHF: Flat surface, chlorinated polyvinyl chloride, insertion installation pH electrode
External cable DIN-EL: External cable conforms to DIN model
