Product Introduction

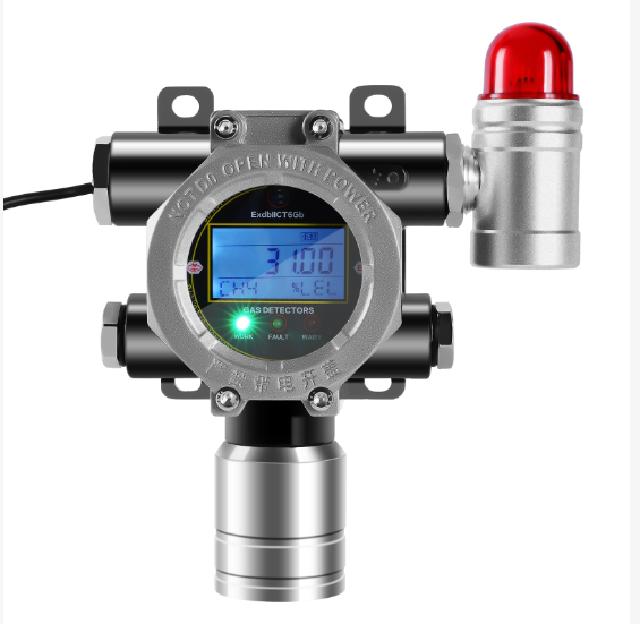

I. Freon Gas Alarm | Industrial Refrigerant Leak Detector R22/R32 Refrigerant Concentration Detector Product Overview
Freon gas alarm (refrigerant gas detection alarm system), composed ofGas alarm controller + Freon gas detectorComposed of, belonging to industrial fixed gas detection equipment. Specifically designed for real-time concentration monitoring of refrigerant leaks such as R22, R32, R134a, R410A, widely used in refrigeration machine rooms, cold storage, central air conditioning machine rooms, refrigerant filling workshops, pharmaceutical cold chain warehouses and other scenarios. The equipment performs 24-hour online detection of Freon concentration in the air. When the leakage concentration reaches the preset alarm threshold, it immediately triggers sound and light alarms and can link with fans, solenoid valves and other equipment to promptly eliminate leakage hazards, protect on-site personnel safety, and meet safety supervision and cold storage safety acceptance specifications.
II. Freon Gas Alarm | Industrial Refrigerant Leak Detector R22/R32 Refrigerant Concentration Detector Product Introduction
Freon refrigerant is colorless and odorless, difficult to detect after leakage; refrigerants such as R32 are flammable, and large accumulation can easily cause explosion and suffocation, while also causing refrigerant loss and environmental pollution. This Freon alarm system uses dedicated infrared/semiconductor sensors, with detectors installed in areas prone to leakage accumulation, collecting Freon concentration signals in real time and transmitting them via wired connection to the alarm host. The host displays on-site concentration values in real time, with sound and light prompts when exceeding limits; supports RS485 and 4-20mA signal output, can connect to PLC, DCS, and cloud platforms for remote monitoring. The whole machine has an explosion-proof design, suitable for humid cold storage and interference-heavy industrial environments in machine rooms. The complete system has full qualifications, can be used for project safety acceptance, and supports on-site installation and commissioning and solution customization.
III. Freon Gas Alarm | Industrial Refrigerant Leak Detector R22/R32 Refrigerant Concentration Detector Features
- Dedicated refrigerant sensor: Sensitive response to R22/R32/R134a/R410A Freon, strong anti-interference, rapid detection of trace leaks.
- Real-time concentration display: Alarm host + detector optional display, intuitive viewing of on-site Freon real-time concentration.
- Two-level alarm function: Low alarm and high alarm dual-threshold settings, sound and light alarm when exceeding limits, reminding on-site personnel to handle.
- Linkage control outputOptional functions
- Multiple signal transmission: Supports 4-20mA analog and RS485 bus signals, can connect to industrial control systems and cloud platforms.
- Explosion-proof protective housing: Detector explosion-proof housing, suitable for explosion-proof areas such as refrigerant filling rooms, dustproof and moisture-proof.
- Fault self-check prompt: The system automatically monitors sensor disconnection and faults, and fault alarms remind operation and maintenance personnel for inspection and repair.
- Multi-point centralized monitoring: One alarm host can connect multiple detectors, achieving centralized monitoring of multiple points in multiple machine rooms.
- Data storage and traceability: The host can store alarm records and concentration history data, facilitating safety inspection traceability.
- Easy installation and maintenance: Split structure, host and detector installed separately; sensor can be replaced individually, convenient calibration.
- IoT remote version optional: 4G/WiFi wireless transmission, remote viewing of concentration and receiving alarm push notifications via mobile phone/computer.
IV. Freon Gas Alarm | Industrial Refrigerant Leak Detector R22/R32 Refrigerant Concentration Detector Technical Parameters
Table
| Item | Parameter specifications |
|---|---|
| Detection gas | Freon (R22, R32, R134a, R410A and other refrigerants, selected according to needs) |
| Detection principle | Infrared sensor / semiconductor sensor (selected according to refrigerant type) |
| Measurement range | 0~1000ppm / 0~5000ppm (range customizable) |
| 分辨率 | 1ppm |
| Detection method | Diffusion sampling |
| Alarm settings | Level 1 low alarm, Level 2 high alarm, thresholds customizable |
| Response time | ≤30s |
| 信号输出 | 4-20mA, RS485 (Modbus), relay passive contacts |
| Explosion-proof grade | Ex d IIC T6 Gb (detector) |
| 防护等级 | IP65 |
| Working power supply | Detector: DC24V; Alarm host: AC220V |
| 工作温度 | -20℃～+50℃ |
| Working humidity | 10% RH~95% RH, no condensation |
| Transmission distance | Bus type max 1000m; 4-20mA max 500m |
| Alarm method | Host + detector sound and light alarm (red warning light + buzzer) |
| 安装方式 | Wall-mounted installation |
| Host capacity | Can connect 1~64 detectors (host model optional) |
| : Relay switch quantity output, automatic linkage of exhaust fans and refrigerant shut-off solenoid valves when exceeding limits. | 4G wireless transmission, cloud platform, data storage, local printing |
Main Application Areas
- HVAC Systems — Detects refrigerant leaks in air conditioning and heat pump systems to ensure efficient operation and safety.
- Cold Storage Facilities — Monitors refrigerant concentration in cold storage rooms to prevent leaks and protect personnel and products.
- Industrial Refrigeration — Used in industrial refrigeration plants for continuous leak detection of R22, R32, and other refrigerants.
- Commercial Refrigeration — Ensures safety in supermarkets, restaurants, and food processing facilities by detecting refrigerant leaks early.
