Product Introduction
German Imported Standard pH & ORP Intelligent Measurement and Control System

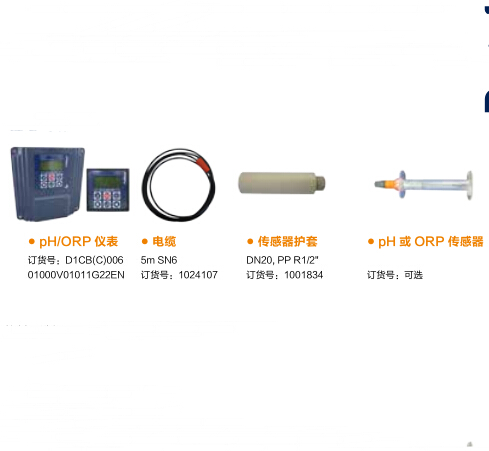

Configuration A: pH & ORP Pipeline Installation
■ Function Description:
Wide voltage input
One remote pause input
Two limit relay outputs
One alarm relay output
Two pulse outputs for metering pump control
Two PID control outputs
One 4-20mA output
Measurement range: pH: 0.00...14 ORP: -1000...+1000mV
Resolution: pH: 0.01 ORP: 1mV
Accuracy: 0.5% of measurement range
Applications: drinking water, RO water, swimming pool water, cooling water, industrial process water, aquariums, food and beverage, papermaking, electroplating, chemical, semiconductor and other industries
Configuration B: pH & ORP Bypass Installation
■ Function Description:
Wide voltage input
One remote pause input
Two limit relay outputs
One alarm relay output
Two pulse outputs for metering pump control
Two PID control outputs
One 4-20mA output
Measurement range: pH: 0.00...14 ORP: -1000...+1000mV
Resolution: pH: 0.01 ORP: 1mV
Accuracy: 0.5% of measurement range
Applications: drinking water, RO water, swimming pool water, cooling water, industrial process water, aquariums, food and beverage, papermaking, electroplating, chemical, semiconductor and other industries
German Imported Compact pH & ORP Intelligent Measurement and Control System
Configuration A: pH & ORP Pipeline Installation
■ Function Description:
Wide voltage input
One remote pause input
One relay output
One pulse output for metering pump control
One PID control output
One 4-20mA output
Measurement range: pH: 0.00...14 ORP: -1000...+1000mV
Resolution: pH: 0.01 ORP: 1mV
Accuracy: 0.5% of measurement range
Applications: drinking water, RO water, swimming pool water, cooling water, industrial process water, aquariums, food and beverage, papermaking, electroplating, chemical, semiconductor and other industries
Configuration B: pH & ORP Bypass Installation
■ Function Description:
Wide voltage input
One remote pause input
One relay output
One pulse output for metering pump
One PID control output
One 4-20mA output
Measurement range: pH: 0.00...14 ORP: -1000...+1000mV
Resolution: pH: 0.01 ORP: 1mV
Accuracy: 0.5% of measurement range
Applications: drinking water, RO water, swimming pool water, cooling water, industrial process water, aquariums, food and beverage, papermaking, electroplating, chemical, semiconductor and other industries
