Product introduction

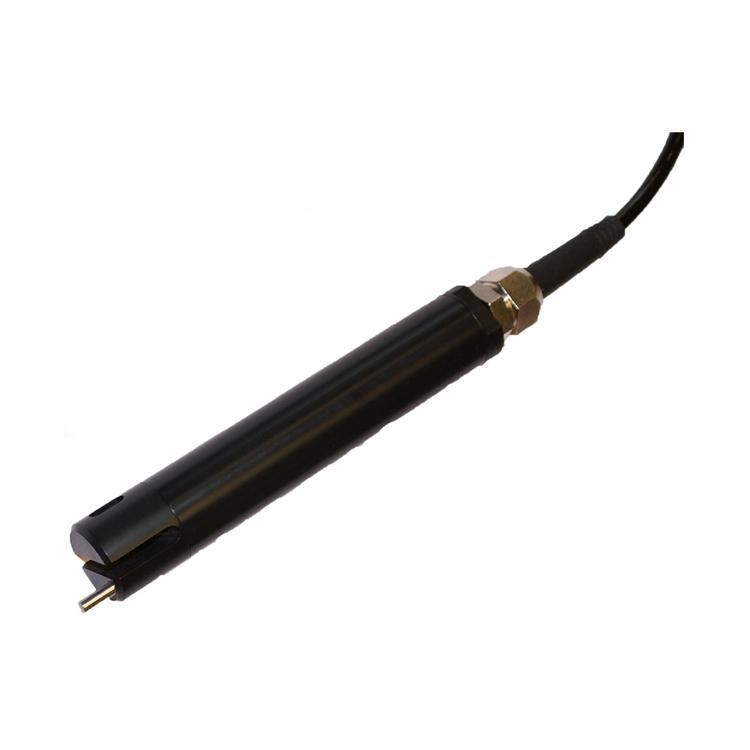

smart storm water quality sensor C4E description:
Sensor electrode technology: This sensor operates with 4 electrodes: a constant voltage AC is established between a pair of graphite main electrodes. Platinum secondary electrodes adjust the voltage applied to the main electrodes to reflect fouling. The voltage measured between the main electrodes is a function of resistance, thus measuring conductivity.
Digital technology: The smart digital C4E sensor stores calibration history inside the sensor, allowing a 'plug and play' system without recalibration.
smart storm water quality sensor C4EDigitally optimized measurement technology:
4-electrode conductivity sensor (2 graphite & 2 platinum)
Smart sensor stores configuration settings and calibration history
Range 0-200 mS/cm
Digital sensor - Modbus RS-485
Robust and waterproof housing
smart storm water quality sensor C4E applications:
Industrial wastewater treatment
Municipal sewage treatment
Surface water monitoring
Seawater
Drinking water
smart storm water quality sensor C4E parameters:
| Measurement principle |
Conductivity sensor with 4 electrodes (2 graphite, 2 platinum) |
| Conductivity measurement range |
0-200.0 μS/cm |
| Resolution |
0.01~1 (depending on range) |
| Accuracy |
+/- 1% of full scale |
| Salinity measurement range |
5-60 g/Kg |
| TDS -KCl measurement range |
0-133 000 ppm |
| Response time |
< 5 s |
| Operating temperature |
0°C to 50°C |
| Temperature compensation |
CTN |
| Operating temperature |
- 10°C to + 60°C |
| Signal interface |
Modbus RS-485 (optional SDI-12) |
| Refresh time |
Max < 1 s |
| Sensor supply voltage |
5~ 12V |
| Power consumption |
Standby: 25 μA |
| Sensors |
|
| Dimensions |
Diameter: 27 mm; length: 177 mm |
| Weight |
350g (sensor + 3m cable) |
| Material |
PVC, stainless steel |
| Pressure |
5 bars |
| Connection |
9-armored connector, polyurethane sheath, bare wires or waterproof valve |
| Protection rating |
IB68 depending on sealing cap |
| Protection |
IP68 |
