Product introduction

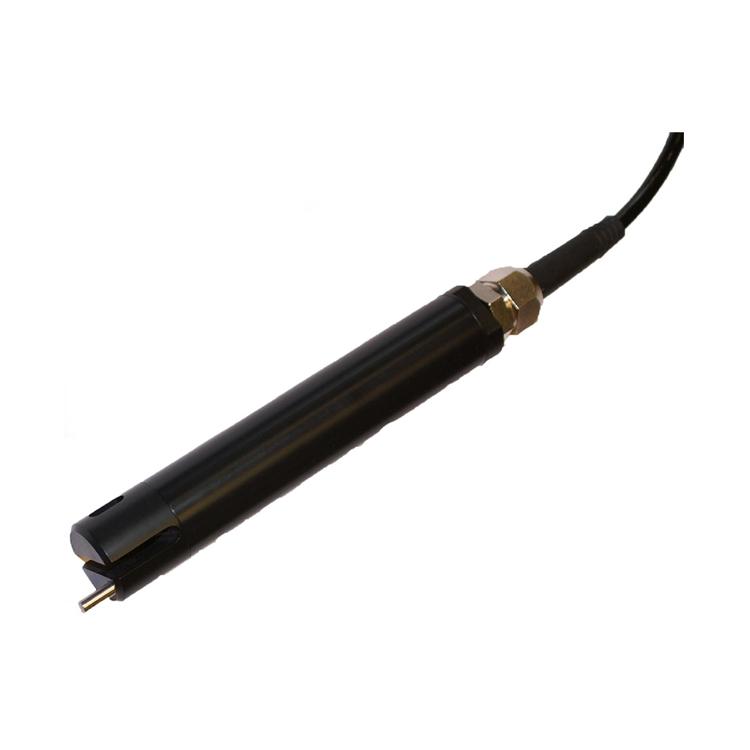

smart storm water quality sensorNTUDescription:
Optical technology: Measurement principle based on turbidimetric method / 880 nm (ISO 7027). The sensor can be calibrated with formazin standard solution. The NTU sensor integrates low-cost optical technology, with extremely low maintenance costs and no consumables.
Digital technology: The smart digital C4E sensor stores calibration history data inside the sensor, allowing 'plug and play' systems without calibration.
smart storm water quality sensor NTU features:
Digital optimized measurement technology
IR optical sensor with fiber optics
Range: 0-4000 NTU or 0-4500 mg/L
Digital sensor: Modbus RS-485
Complies with ISO 7027
Robust and waterproof housing material
smart stormWater quality sensor NTUApplications:
Industrial wastewater treatment
Municipal sewage treatment
Surface water monitoring
Drinking water
Public health network
smart storm water quality sensor NTU parameters:
| Measurement principle |
Scattered IR at 90° |
| Resolution |
0,01 to 1 NTU - mg/L |
| Accuracy |
<5% of reading |
| Temperature compensation |
via CTN |
| Operating temperature |
-10°C to + 60°C |
| Signal interface |
Modbus RS-485 (standard) and SDI-12 (optional) |
| Refresh time |
< 1 second |
| Sensor power supply |
5 to 12 volts |
| Dimensions |
Diameter: 27 mm; Length: 170 mm |
| Weight |
300 g (sensor + 3 m cable) |
| Material |
PVC, quartz, PMMA, nickel-plated brass |
| Pressure |
5 bars |
| Connection |
9 armored connectors, polyurethane protective sleeve, bare wires or waterproof valve |
| Protection rating |
IP68 depending on sealing cap |
