Product introduction

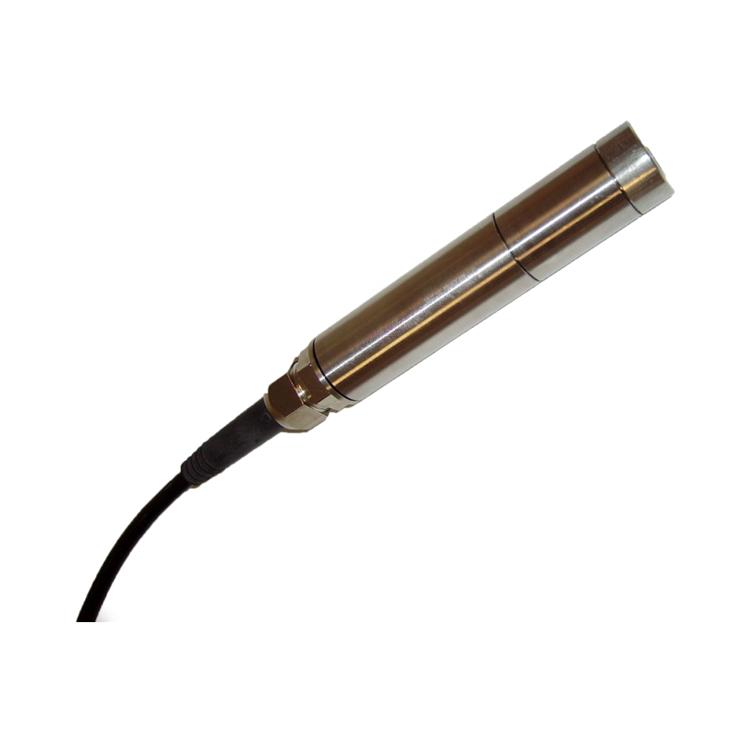

smart storm water quality sensor optical dissolved oxygen temperatureOPTOD description:
Optical technology: The OPTOD sensor is based on cold light optical technology and is supported by ASTM International Standard Method D888-05. With no calibration requirements and extremely low power consumption technology, the OPTOD sensor is suitable for field work and short-term or long-term monitoring.
This technology does not consume oxygen and can measure accurately under any conditions, even at very low oxygen concentrations.
Digital technology: The 'smart' OPTOD sensor stores calibration history data within the sensor, allowing 'plug and play' systems without calibration.
smart storm water quality sensor optical dissolved oxygen temperatureOPTOD features:
Digital optimized measurement technology
Optical prism technology requires minimal maintenance
Digital sensor: Modbus RS-485
No calibration required, minimal or no drift
Rugged and waterproof housing
smart storm water quality sensor optical dissolved oxygen temperatureOPTODApplications:
Industrial wastewater treatment
Municipal wastewater treatment
Surface water monitoring
Drinking water
smart storm water quality sensor optical dissolved oxygen temperatureOPTOD parameters:
| Measurement principle |
Cold light optical measurement |
| Measurement range |
0.00 to 20.00 mg/L |
| Resolution |
0.01 |
| Accuracy |
+/- 0.1mg/L, +/- 0.1 ppm, +/- 1 % |
| Response time |
90% of measured value (60s) |
| Flow rate |
No flow required |
| Temperature compensation |
Via CTN |
| Operating temperature |
- 10°C to + 60°C |
| Signal interface |
Modbus RS-485 (standard) SDI-12 (optional) |
| Refresh time |
< 1 s |
| Sensor power supply |
5~12 volts |
| Power consumption |
Standby 25 μA, average RS485 (1 measure/second): 4.4 mA, average SDI12 (1 |
| Dimensions |
Diameter: 25 mm; Length: 146 mm |
| Weight |
450g (sensor + 3m cable) |
| Material |
Stainless steel 316L |
| Pressure |
5 bars |
| Connection |
9 armored connectors, polyurethane protective sleeve, bare wires or waterproof valve |
| Protection rating |
IB68 depending on sealing cap |
