Product introduction

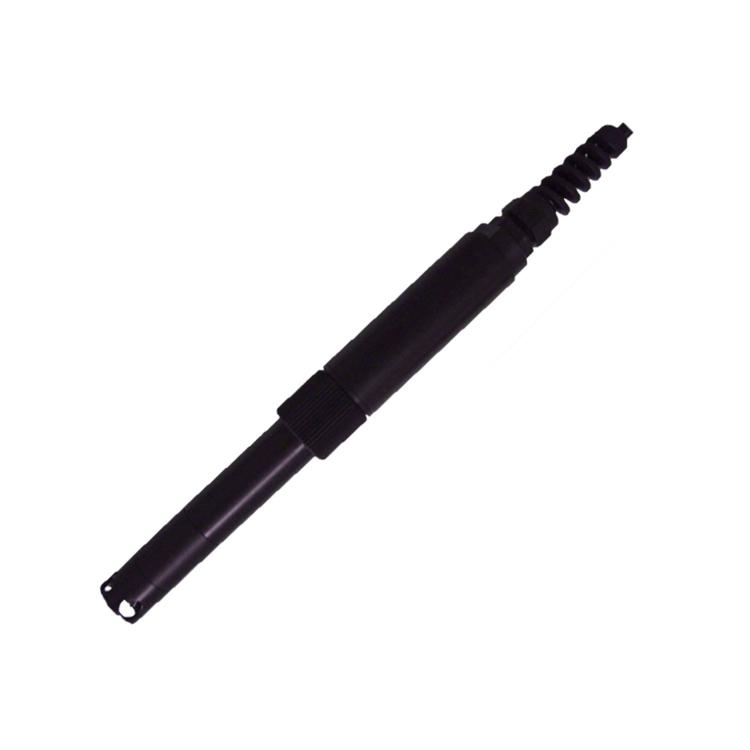

smart storm water quality sensor PHEHT description:
Sensor cartridge: The pH/ORP sensor cartridge is designed for extended service life using plastic gel technology, meaning the sensor does not require frequent calibration or replacement. The sensor is designed for the toughest conditions a pH/ORP sensor can encounter, in terms of sensor resistance, fast response time, minimal flow dependence, and low power consumption.
Digital technology: This smart digital PHEHT sensor stores historical calibration data within the sensor, enabling a 'plug-and-play' system without recalibration.
smart storm water quality sensor PHEHT features:
Digitally optimized measurement technology
Sensor combining pH, ORP & temperature
Smart sensor stores configuration settings and calibration history
Digital sensor: Modbus RS-485
Field-replaceable pH/ORP sensor cartridge
Robust and waterproof housing
smart storm water quality sensor PHEHT range:
PH：0 to 14
ORP: -1000mV to +1000mV
Temperature: -10°C to +50°C
smart storm water quality sensor PHEHT applications:
The PHEHT sensor is designed for some of the most challenging environments, from pure mountain spring water with conductivity as low as 20 µS/cm, lake and river water with conductivity (100 – 2000 µS/cm), seawater with conductivity of 50 mS/cm, to wastewater with conductivity above 200 mS/cm.
smart storm water quality sensor PHEHT parameters:
| PH |
|
| Measurement principle |
Combined electrode (pH/ref): special glass, Ag/AgCl ref. gelled |
| Range |
0 - 14 pH |
| Resolution |
0.01 pH |
| Redox reaction |
|
| Measurement principle |
Combined electrode (Redox/reference): Platinum tip, Ag/AgCl. Gelled |
| Range |
- 1000 to + 1000 mV |
| Resolution |
0.1 mV |
| Accuracy |
± 2 mV |
| Temperature |
|
| Technology |
CTN |
| Range |
0.00 °C to + 50.00°C |
| Resolution |
0.01 °C |
| Accuracy |
± 0.5 °C |
| Response time |
< 5 s |
| Operating temperature |
0°C to + 60°C |
| Protection rating |
IP 68 |
| Interface |
Modbus RS-485 / SDI-12 (optional) |
| Power supplies |
5 to 12 volts |
| Power consumption |
Standby: 25μA, average RS485 (1 measurement/second): 3.9 mA, average SDI12 |
| Sensors |
|
| Dimensions |
Diameter: 27 / 21 mm; Length: 207 mm |
| Weight |
350 g (sensor + 3m cable) |
| Material |
PVC, platinum |
| Pressure |
5 bars |
| Cable |
Coaxial cable, polyurethane, bare wires or valve connector |
| Protection |
IP68 depending on sealing cap |
