Product introduction

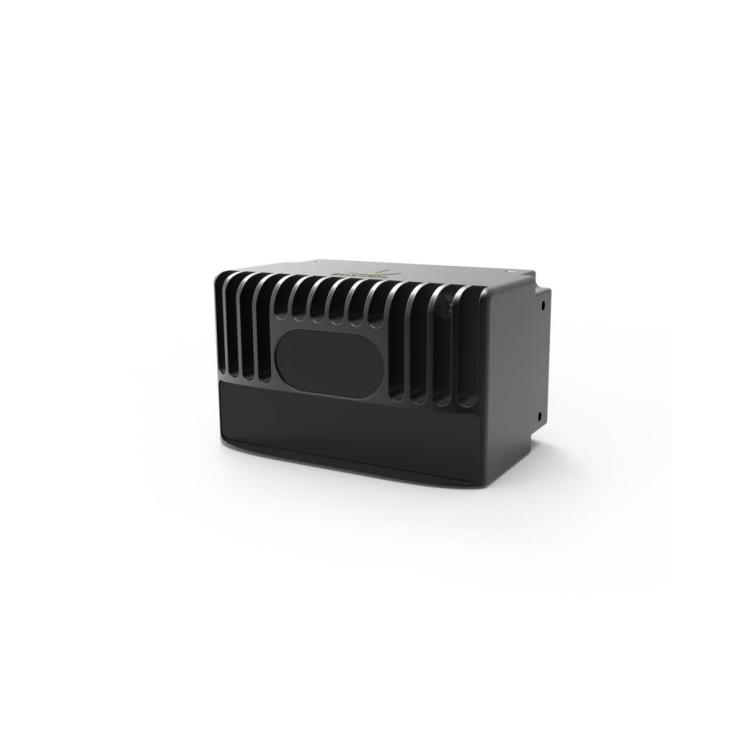

Solid-state area array LiDAR distance sensorCE30-A description:
The CE30 uses Time of Flight (TOF) for ranging. It emits modulated near-infrared light, which reflects off objects and is received again by the CE30. The CE30 calculates the phase difference and time difference between emission and reception to determine the distance of the scene.
Solid-state area array LiDAR distance sensorCE30-A Product features:
The radar calculates the nearest point internally and outputs single-point values via CANBUS/TCP
Solid-state area array LiDAR distance sensorCE30-A parameters:
| Parameter |
Typical value |
| Ranging method |
Time of flight |
| Operating wavelength |
850nm |
| Field of view |
132*9 degree |
| Pixel resolution |
320*24 |
| Frame rate |
20fps |
| Response time |
200ms |
| Ranging resolution |
1cm |
| Detection range2 |
0.1~1.5m @ 10% reflectivity 0.1~4m @ 90% reflectivity |
| Non-ambiguity range3 |
0~12m |
| Data interface |
CAN |
| Repeatability (1σ)4 |
≤3cm |
| Enclosure rating |
IP65 |
| Dimensions |
79*47*50mm |
