Product Introduction

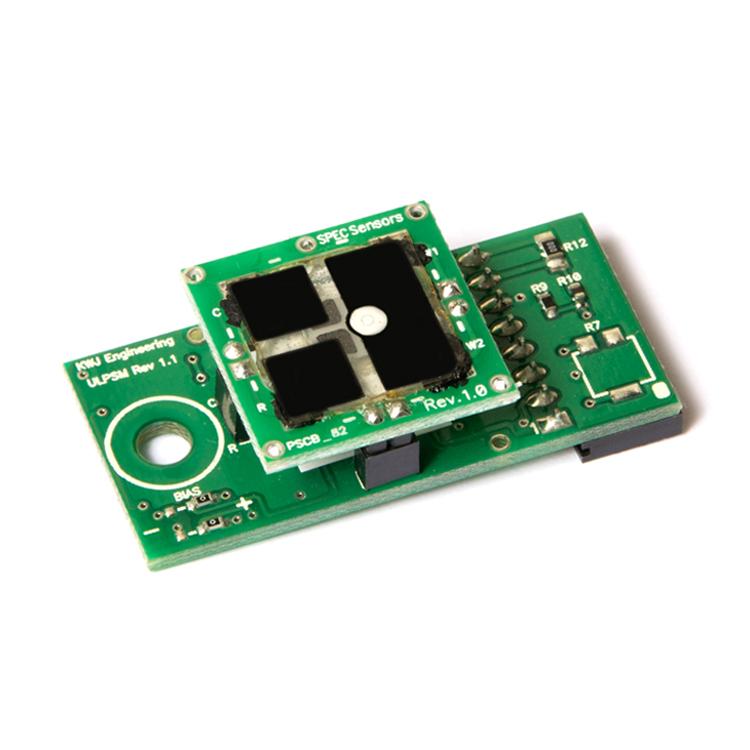

US SPEC Sensors Air Quality H2S Analog Output Module ULPSM-H2S 968-003 Description:
Quickly integrate hydrogen sulfide sensor systems into your system with very low power consumption and a simple analog sensor signal output. ULPSM converts the linear current signal output of the hydrogen sulfide sensor to a linear voltage signal while maintaining the sensor in an ideal biased operating environment.
US SPEC Sensors Air Quality H2S Analog Output Module ULPSM-H2S 968-003 Features:
0 to 3 V analog signal output
Low power consumption less than 45 mWFast response
On-board temperature sensor
Simple sensor replacement
Standard with connector
US SPEC Sensors Air Quality H2S Analog Output Module ULPSM-H2S 968-003 Applications:
Fixed industrial safety monitoring
Portable industrial safety monitoring
Portable personal safety monitors
Indoor air quality monitoring
Outdoor air quality monitoring
Air purification control
| Parameter |
Technical Specifications |
| Measurement Range |
0-50ppm |
| Sensitivity |
0.3ppm |
| Resolution |
0.15ppm |
| Accuracy |
<±2 % |
| Response Time T90 |
< 30 seconds |
| Stabilization Time After Power On |
60 minutes |
