US SPEC Sensors Air Quality O3 Digital Output Module - DGS-O3 968-039
Calibrated and temperature-compensated output
Fast response less than 30 seconds
Simple digital UART interface
Integrated T and RH sensors
Robust 10-year estimated life
Lead-free certified
Small form factor
UART provided via USB adapter
Lightweight <57g
Product Introduction

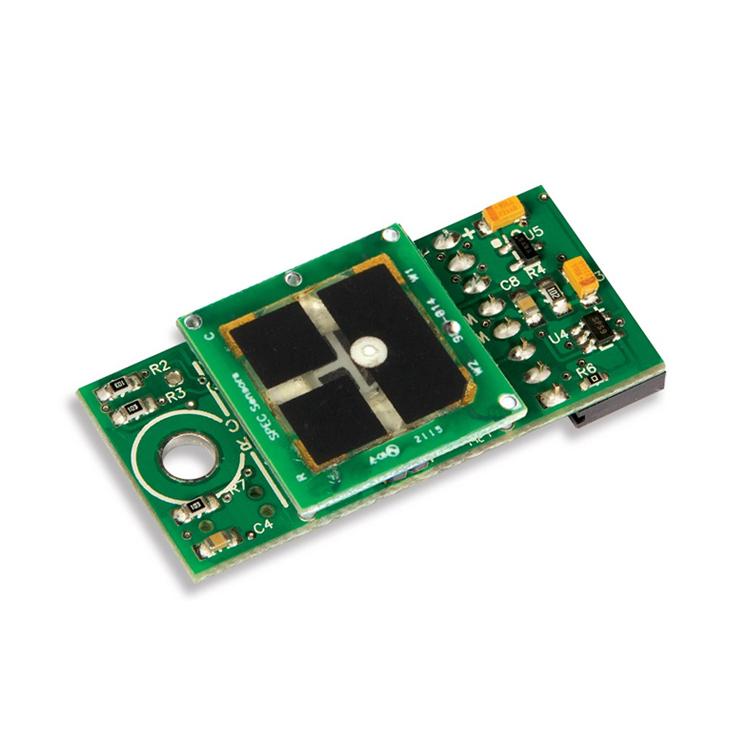

US SPEC Sensors Air Quality O3 Digital Output ModuleDGS-O3 968-039Description:
SPEC Sensors now offers a simple way to add gas sensing to the Internet of Things. Combining our screen-printed electrochemical sensor technology (SPEC Sensors) with advanced electronics algorithms enables small, lightweight, high-performance, low-power gas sensing for wireless, portable, and networked solutions.
US SPEC Sensors Air Quality O3 Digital Output ModuleDGS-O3 968-039Features:
Calibrated and temperature-compensated output
Fast response less than 30 seconds
Simple digital UART interface
Integrated T and RH sensors
Robust 10-year estimated life
Lead-free certified
Small form factor
UART provided via USB adapter
Lightweight <57g
US SPEC Sensors Air Quality O3 Digital Output ModuleDGS-O3 968-039 Applications:
Air purification control
Air quality monitoring
Industrial safety sensing
US SPEC Sensors Air Quality O3 Digital Output ModuleDGS-O3 968-039Parameters:
| Parameter |
Specification |
| Measurement Range |
0-20ppm |
| Resolution |
20 ppb |
| Accuracy |
15% |
| Repeatability of Measurement |
< ± 3% |
| T90 Response Time |
< 30 seconds |
| Power Consumption |
1-minute excitation sample 12 mW continuous sampling at 5, 10, 30, 60-second intervals |
| Expected Service Life |
> 5 years |
| Operating Temperature Range |
-20C~40C |
| Operating Humidity Range |
15~ 95% |
| Dimensions |
1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm) |
| Weight |
<57g |
