UK SST Copper-Shell Hall Effect Digital Position Sensor - DS0062
3.8-30VDC
Digital current sink output
Quad Hall design essentially eliminates mechanical stress effects
Magnetic temperature compensation
High output current capability, max 50mA
Operate/release points symmetrical around zero gauss
Operating temperature range –40 to +150°C
Product Introduction
1. Brief description of position sensor DS0062:
The copper-shell position sensor features a thermally balanced integrated circuit across the entire operating temperature range.
The negative compensation slope is optimized to match the negative temperature coefficient of low-cost magnets. Bandgap regulation enables stable operation over the supply voltage range.
2. Position sensor DS0062Features:
3.8-30VDC
Digital current sink output
Quad Hall design essentially eliminates mechanical stress effects
Magnetic temperature compensation
High output current capability, max 50mA
Operate/release points symmetrical around zero gauss
Operating temperature range –40 to +150°C
Notes:
When power is restored, the latching device may power down and cause the output to change state. If a strong
magnetic field is present, the sensor will be in the state specified by the magnetic field.
3. Position sensor DS0062Typical Applications:
Camshaft and crankshaft speed and position
Sprocket speed
Chain conveyor speed and distance
Motion stop detectors

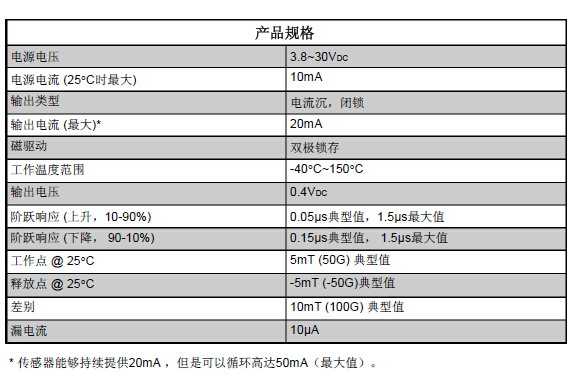

4. Position sensor DS0062 Product Specifications
