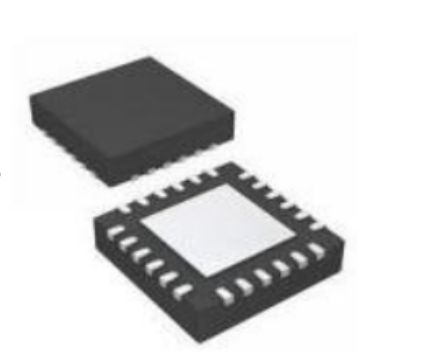

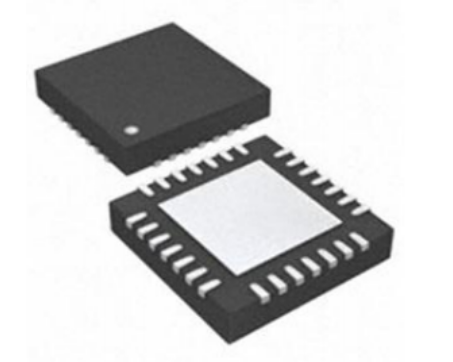

Stepper Motor Driver Chip - MS32006
Dual stepper motor driver, full-step or half-step, maximum operating current 1A
I2C serial bus communication controls the motor
Command buffer function, pre-stores the next command while the motor rotates according to the current command
Integrated one DC motor driver, maximum drive current ±1.1A
QFN24 package (back heat sink)
Product Introduction
MS32006is a multi-channel motor driver chip that includes two stepper motor drivers,one DC motor driver; the current of each channel ishighcurrent1.0A; supports two-phase four-wire and four-phasefive-wire stepper motors.The chip adoptsI2Ccommunication interface control mode, compatible with3.3V/5Vstandard industrial interfaces.
1. Features of Stepper Motor Driver Chip MS32006:
Dual stepper motor driver, full-step or half-step,highmaximum operating current 1A
I2C serial bus communication controls the motor
Command buffer function, pre-stores the next command while the motor rotates according to the current command
Integrated one DC motor driver,highmaximum drive current ±1.1A
QFN24 package (back heat sink)
2. Applications of Stepper Motor Driver Chip MS32006:
