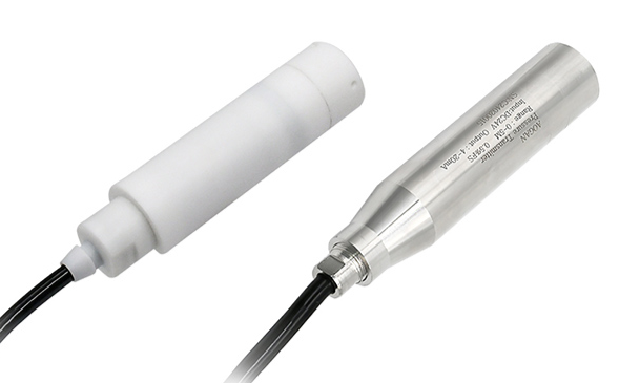

AMTAPW Series Submersible Level Transmitter - AMTAPW Series
| Parameter | Value |
|---|---|
| Model | AMTAPW Series |
| Supply voltage | DC24V |
| Linearity | ±0.2%FS |
| Non-linearity | ±0.2%FS |
| Repeatability | ±0.1%FS |
| Zero Point Temperature Drift | ±0.02%FS/℃ |
| Sensitivity Temperature Drift | ±0.03%FS/℃ |
| Long-term stability | ±0.1%FS/year |
| Response time | ≤50ms |
| Medium Temperature | -40~+85℃ |
| 工作温度 | -40~+85℃ |
| Housing Protection | IP67 |
| Overload Capacity | 150%FS |
Product Model: AMTAPW Series
Product Introduction
AMTAPW Series Submersible Level Transmitter, equipped with a high-performance pressure sensor core, can accurately capture the hydrostatic pressure proportional to the liquid level depth, and through a signal conditioning circuit converts it into a standard (current or voltage) signal output, establishing a linear correspondence between the output signal and the liquid depth, achieving measurement of liquid depth.
Main Application Areas
- Water Treatment — Level monitoring in tanks, reservoirs, and wastewater treatment plants.
- Oil and Gas — Liquid level measurement in storage tanks and pipelines.
- Chemical Industry — Level control for compatible chemical liquids.
- Environmental Monitoring — Groundwater and surface water level measurement.
