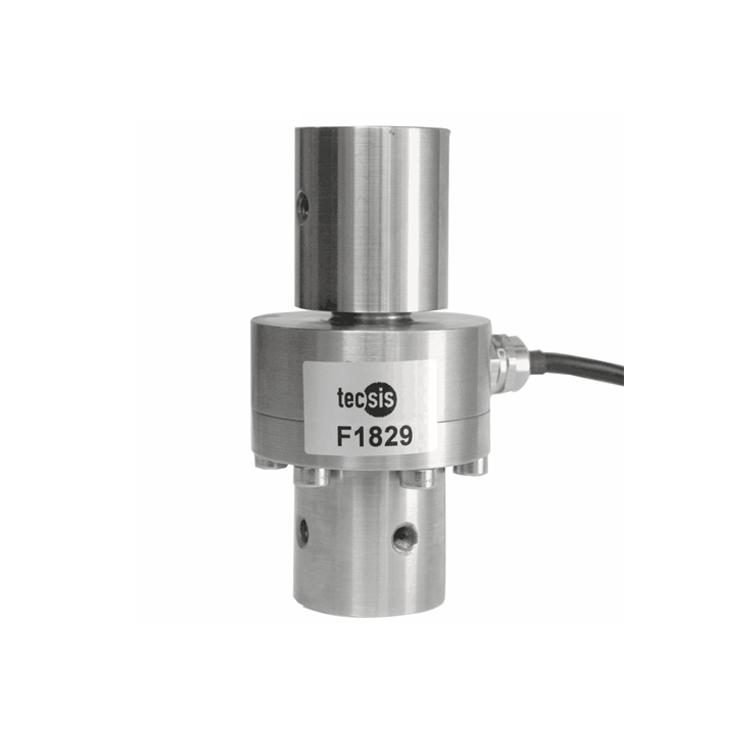

German TECSIS Pressure Sensor - F1829
Features
Compression load cell
Stainless steel or alloy steel material
High stability, easy installation
Protection class: IP65
Mainly used in press-fitting machines and equipment
Can be designed according to actual press-fitting machines
Product Introduction
German TECSIS Pressure Sensor F1829 Features:
Compression load cell
Stainless steel or alloy steel material
High stability, easy installation
Protection class: IP65
Mainly used in press-fitting machines and equipment
Can be designed according to actual press-fitting machines
German TECSIS Pressure Sensor F1829 Specifications:
| Parameter |
Technical Specifications |
| Output Sensitivity |
1.5±10% mV / V |
| Zero Output |
±2% F.S |
| Nonlinearity |
1% F.S. |
| Hysteresis |
0.5% F.S |
| Repeatability |
0.1% F.S |
| Creep (30 minutes) |
0.1% F.S. |
| Temperature Sensitivity Drift |
0.05% F.S. / 10ºC |
| Zero Temperature Drift |
0.05% F.S. / 10ºC |
| Input Resistance |
385±30Ω |
| Output Resistance |
350±5Ω |
| Insulation Resistance |
≥5000MΩ/ 50VDC |
| Excitation Voltage |
10V |
| Maximum Excitation Voltage |
15V |
| Temperature Compensation Range |
-10 ~ 60ºC |
| Operating Temperature Range |
-20 ~ 80ºC |
| Safe Overload |
150% F.S. |
| Ultimate Overload |
200% F.S. |
| Cable Size |
Ø5×3000 mm |
| Protection Class |
IP65 |
