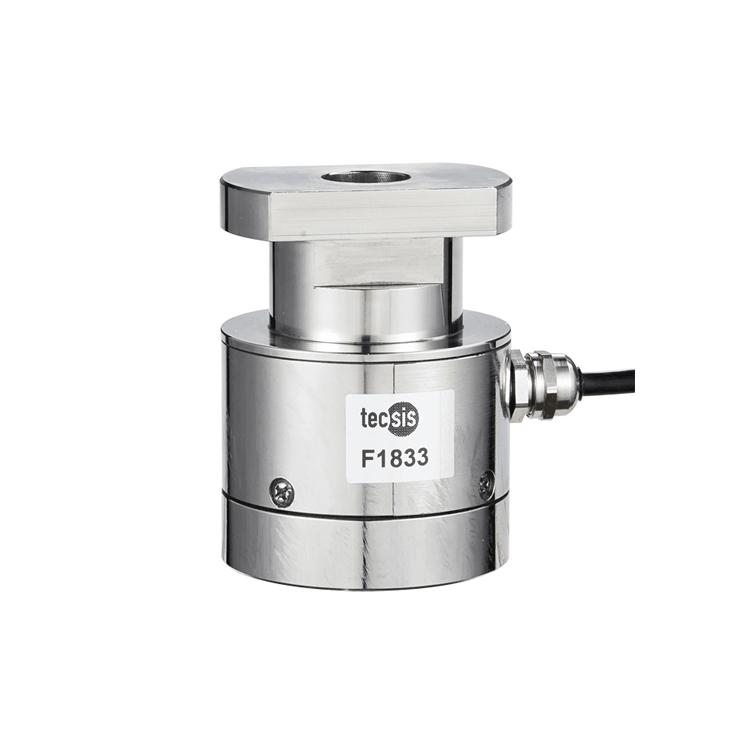

German TECSIS Pressure Sensor - F1833
Compression Load Cell
Alloy steel material, high stability, IP65
Designed for large high-speed punch presses and large stamping machines
Load cell. Specifically used in metal stamping machines, plastic stamping machines,
rubber machines and other automated stamping equipment
Product Introduction
German TECSIS Pressure Sensor F1833 Features:
Compression load cell
Alloy steel material, high stability, IP65
Designed for large high-speed punch presses and large stamping machines
Load cell. Specifically used in metal stamping machines, plastic stamping machines,
rubber machines and other automated stamping equipment
German TECSIS Pressure Sensor F1833 Parameters:
| Parameter |
Technical Specifications |
| Output Sensitivity |
1.0±10% mV / V |
| Zero Output |
±2% F.S |
| Nonlinearity |
0.5% F.S. |
| Hysteresis |
0.5% F.S |
| Repeatability |
0.1% F.S |
| Creep (30 minutes) |
0.1% F.S. |
| Temperature Sensitivity Drift |
0.05% F.S. / 10ºC |
| Zero Temperature Drift |
0.05% F.S. / 10ºC |
| Input Resistance |
750±10Ω |
| Output Resistance |
700±5Ω |
| Insulation Resistance |
≥5000MΩ/ 100VDC |
| Excitation Voltage |
10V |
| Maximum Excitation Voltage |
15V |
| Temperature Compensation Range |
-10 ~ 60ºC |
| Operating Temperature Range |
-20 ~ 80ºC |
| Safe Overload |
150% F.S. |
| Ultimate Overload |
300% F.S. |
| Cable Size |
Ø5×3000 mm |
| Protection Class |
IP65 |
