Product Introduction

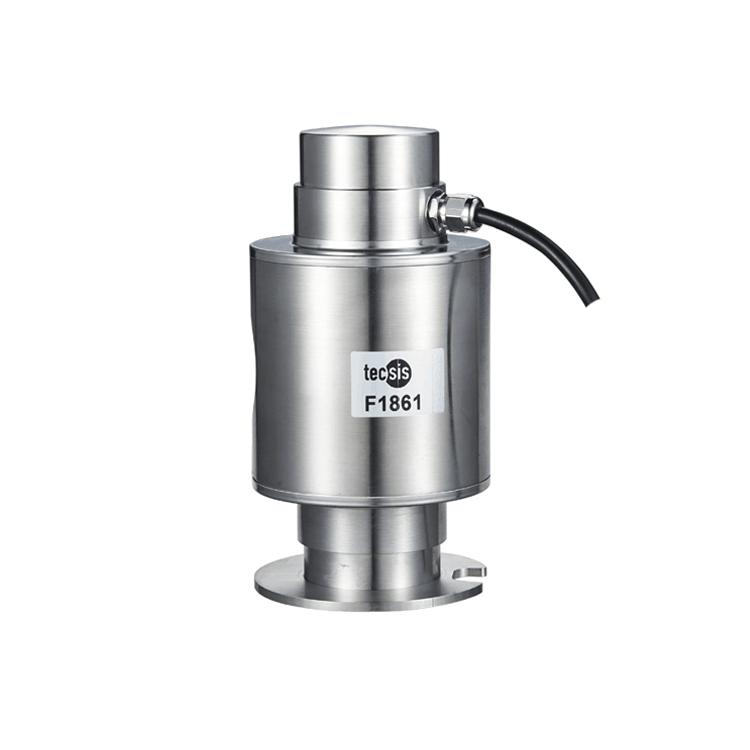

German TECSIS Pressure Sensor F1861 Features：
Compression load cell
Alloy steel material, laser welded, IP67
Easy installation
Double spherical surface load measurement
Used in industrial weighing systems such as truck scales, floor scales, and silos
German TECSIS Pressure Sensor F1861 Description:
| Parameters |
Technical Specifications |
| Output Sensitivity |
2.0±0.2% mV/V |
| Zero Output |
±2% F.S |
| Nonlinearity |
0.03% F.S. |
| Hysteresis |
0.02% F.S. |
| Repeatability |
0.03% F.S. |
| Creep (30 minutes) |
0.1% F.S. |
| Temperature Sensitivity Drift |
0.02% F.S. / 10ºC |
| Zero Temperature Drift |
0.02% F.S. / 10ºC |
| Input Resistance |
400±20Ω |
| Output Resistance |
352±3Ω |
| Excitation Voltage |
5~10V |
| Maximum Excitation Voltage |
15V |
| Temperature Compensation Range |
- 10~40ºC |
| Operating Temperature Range |
- 20~60ºC |
| Safe Overload |
150% F.S. |
| Ultimate Overload |
250% F.S |
| Cable Size |
Ø5×15000mm |
| Protection Class |
IP67 |
