Product Introduction

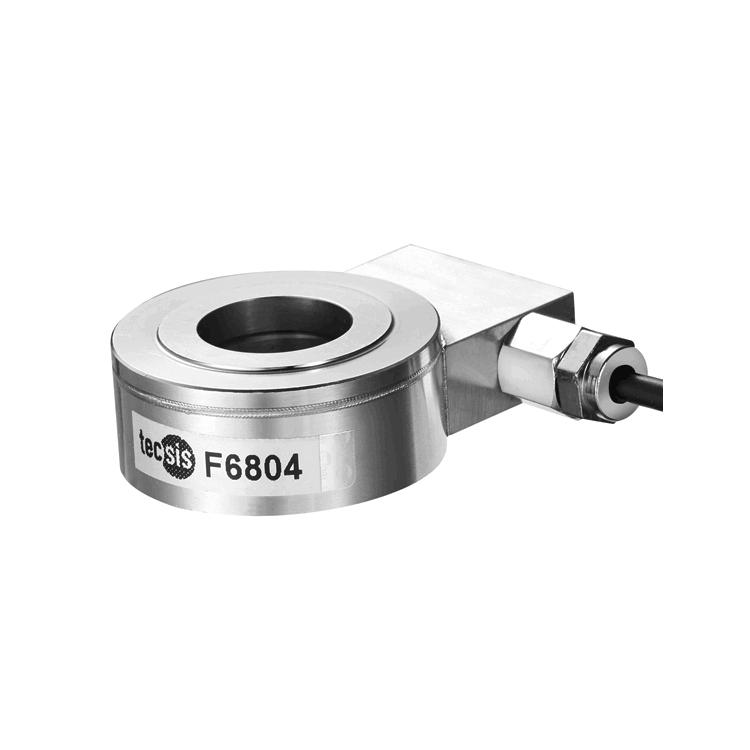

German TECSIS Pressure Sensor F6804 Features:
Washer-type ring stainless steel material sensor
Small deformation
Customizable, IP65
Suitable for tension testing, compression testing,
assembly force testing, and other pressure tests of screws and rods
German TECSIS Pressure Sensor F6804 Parameters:
| Parameter |
Technical Specification |
| Output Sensitivity |
1.0±10% mV / V |
| Zero Output |
±2% F.S. |
| Nonlinearity |
2% F.S |
| Hysteresis |
2% F.S |
| Repeatability |
0.5% F.S. |
| Creep (30 minutes) |
0.5% F.S. |
| Temperature Sensitivity Drift |
0.05% F.S. / 10ºC |
| Zero Temperature Drift |
0.05% F.S. / 10ºC |
| Input Resistance |
385±30Ω |
| Output Resistance |
350±5Ω |
| Insulation Resistance |
≥5000MΩ/ 100VDC |
| Excitation Voltage |
5V |
| Maximum Excitation Voltage |
10V |
| Temperature Compensation Range |
- 10~60ºC |
| Operating Temperature Range |
- 20~80ºC |
| Safe Overload |
150% F.S. |
| Ultimate Overload |
200% F.S. |
| Cable Size |
Ø3×3000 mm |
| Protection Class |
IP65 |
