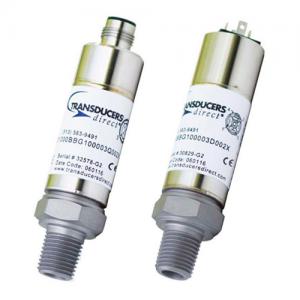

Transducers Direct Pressure Sensor - TD1200 Series

• Fully digital proprietary design
• Innovative redundant sensing element
• 24V digital output for pressure or temperature switch points
• Voltage and current outputs

Model: TD1200 Series

Product Introduction

Transducers Direct TD1200 Series Pressure Sensor Description:

The TD1200 series digital/configurable industrial pressure sensors offer stability and accuracy over a wide temperature range, lower than competing units not found in traditional analog designs, and are low-end competitors.
The TD1200 series features proprietary digital/ASIC technology, characterized by a proven redundant sensing element, without the use of solder in resistors or trim pots that can drift over time. This provides years of excellent performance and reliability even in demanding applications. This is combined with optional 4x overpressure and optional integrated temperature or pressure digital switch features.
For extreme applications using powerful pressure washers, the TD1200 series offers an optional IP69K seal, another industry first, making it ideal regardless of the environment.
The TD1200 series features a flexible low-power design and lower manufacturing costs, offering high cost-performance and making it ideal for custom wireless applications.

Transducers Direct TD1200 Series Pressure Sensor Features:

• Fully digital proprietary design
• Innovative redundant sensing element
• 24V digital output for pressure or temperature switch points
• Voltage and current outputs
• Pressure ranges from 15 to 300 psia
• Custom pressure ranges and outputs
• All stainless steel welded housing
• 0.25% accuracy
• ASIC technology, no zero/span potentiometers
• IP69K rated seal (high-pressure washdown)
• Innovative low current consumption, ideal for custom wireless solutions
• Programmable system provides internal configuration of output, range, and set points for OEM/system integrators to reduce inventory and lead times

• Calibration certificates available (contact customer service)

Transducers Direct TD1200 Series Pressure Sensor Specifications:

Performance	25 C (77 * F)
Accuracy	0.25% BFSL - (0-15 psia range is 4-20mA, 0.5% BFSL)
Pressure Range	15 to 300 psia
Burst Pressure	5X
Pressure Cycles	> 100 million
Update Time	< = 1msec
Digital Output	Optional digital output for pressure, maintenance, or temperature switch points. (Not available with 4-20mA output units), load current 20mA.
