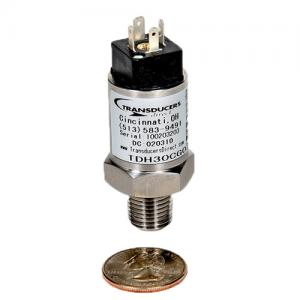

Transducers Direct TDH30 Series OEM Pressure Sensor Description:
The TDH30 series pressure sensor uses piezoresistive technology with an all-stainless steel body. It is compact, long-term stable, easy to install, economical, and reliable.
The TDH30 sets a new price/performance standard for low-cost, high-volume commercial and industrial applications.
Transducers Direct TDH30 Series OEM Pressure Sensor Features:
• 3 to 10000 psi range
• Various outputs
• Compact design
• 316 stainless steel housing
• Low cost
• Industrial 1% accuracy
• Customizable outputs and ranges
• OEM tested and approved
• Low power consumption
Transducers Direct TDH30 Series OEM Pressure Sensor Applications:
• Hydraulics / Mobile hydraulics
• Pneumatic systems
• Food and beverage industry
• Refrigeration systems
• Pumps and compressors
• Energy and water management
• Construction and agricultural equipment
Transducers Direct TDH30 Series OEM Pressure Sensor Specifications:
| Input |
|
| Supply Voltage |
12-36 VDC |
| Pressure Range |
3 to 10,000 psi |
| Proof Pressure |
1.5 x full scale |
| Burst Pressure |
3 x full scale |
| Fatigue Life |
Over 4 million cycles |
| Performance @ 25°C (77°F) |
|
| Accuracy |
1% full scale, BFSL |
| Stability |
0.2% full scale |
| Temperature Compensation |
-10- 75°C (14-167°F) |
| Operating Temperature |
-20- 80°C (-4-176°F) |
