Product Introduction

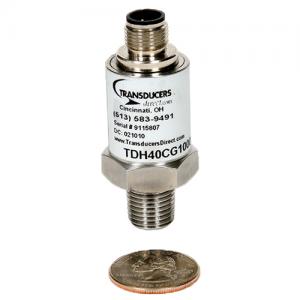

Transducers Direct TDH40 Series OEM Pressure Sensor Description:
The TDH40 series pressure sensors use piezoresistive technology with an all-stainless steel body. They are compact, long-term stable, easy to install, economical, and reliable.
The TDH40 provides a new price/performance standard for low-cost, high-volume commercial and industrial applications.
Transducers Direct TDH40 Series OEM Pressure Sensor Features:
• 3 to 10000 psi range• Various outputs
• Compact design
• 316 stainless steel housing
• Low cost
• Better than 0.4% accuracy
• Customizable output and range
• OEM testing and approval
• Low power consumption
Transducers Direct TDH40 Series OEM Pressure Sensor Applications:
• Hydraulics / Mobile hydraulics• Pneumatic systems
• Food and beverage industry
• Refrigeration systems
• Pumps and compressors
• Energy and water management
• Construction and agricultural equipment
Transducers Direct TDH40 Series OEM Pressure Sensor Specifications:
| Accuracy |
0.4% full scale BFSL |
| Supply Voltage |
12-36 VDC |
| Pressure Range |
3 to 10,000 psi |
| Burst Pressure |
3 x full scale |
| Stability |
0.2% full scale |
| Temperature Compensation |
-10 to 75°C (14 to 167°F) |
| Operating Temperature |
-20 to 80°C (-4 to 176°F) |
